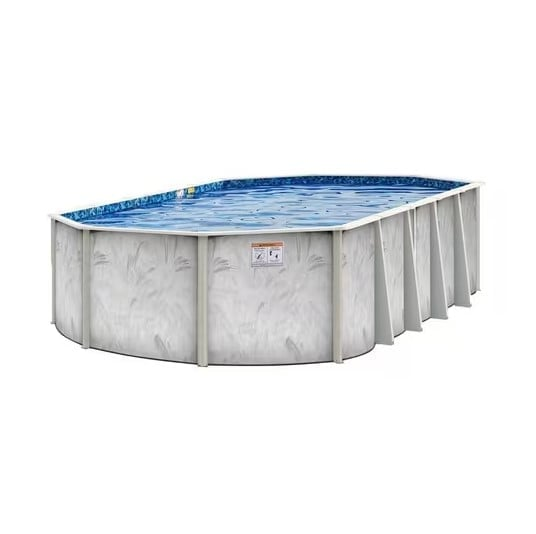

15′ x 30′ Oval 52″ Coastal Above Ground Pool Kit

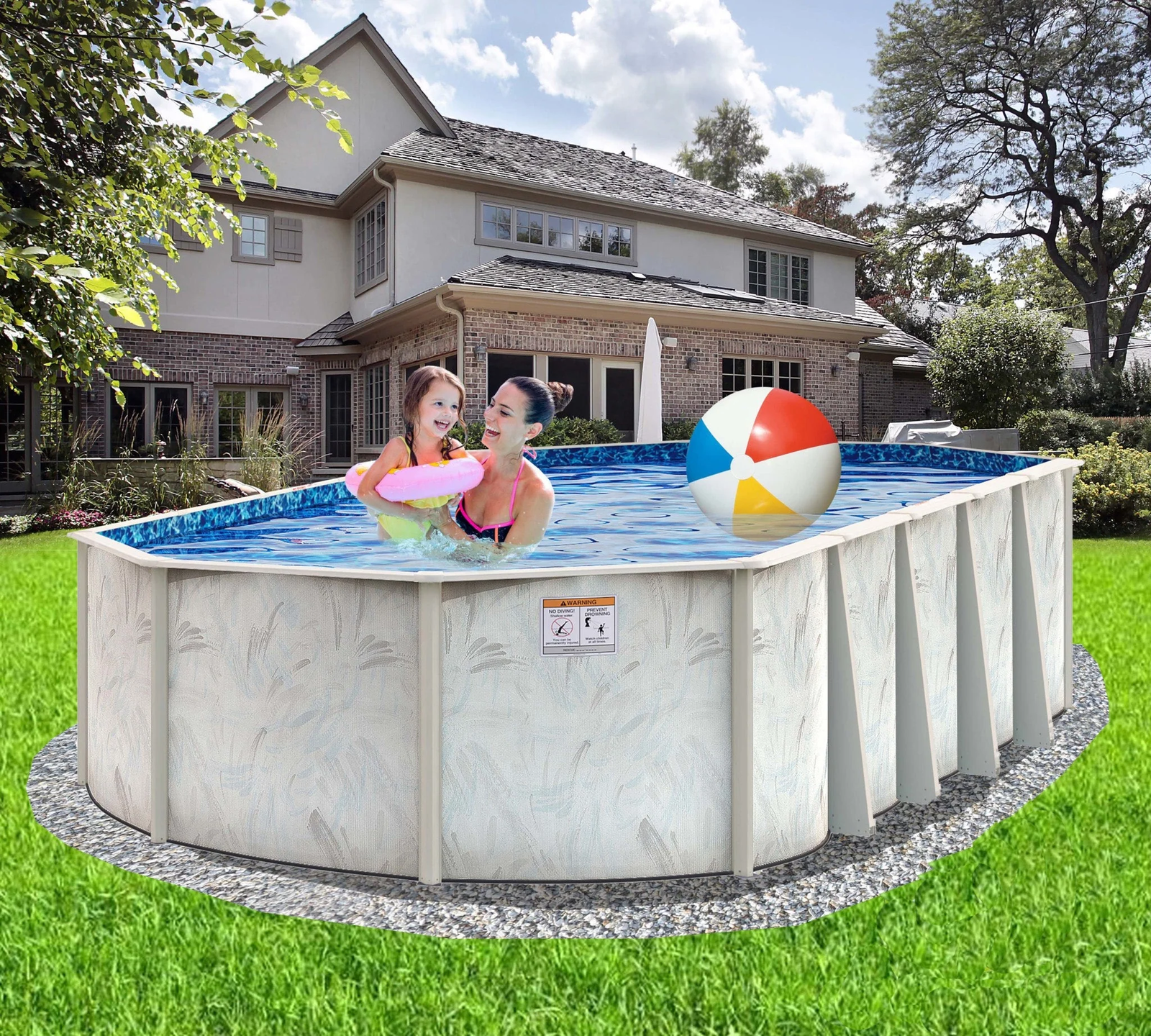

The 15′ x 30′ Oval 52″ Coastal Above Ground Pool Kit is designed to serve as the ultimate backyard centerpiece, offering a robust and spacious swimming area for family recreation and relaxation. Engineered with structural longevity in mind, this oval-shaped pool combines modern design aesthetics with heavy-duty construction elements. Its elongated footprint maximizes your swimming lane distance while fitting comfortably within standard residential yards.

The structural integrity of this pool starts with its corrugated steel wall panels, which are specifically engineered to resist impact damage and seasonal pressure from ice. The walls utilize a unique quadra-fold system combined with a specialized bolting pattern that maximizes the strength of the wall joints. To ensure all-weather resilience, the steel top ledges and vertical uprights undergo a state-of-the-art protective treatment process, resulting in high resistance against rust, corrosion, physical scratches, and degrading UV rays. Premium resin bottom rails and powder-coated end caps add another layer of non-corrosive security where the pool contacts the ground.

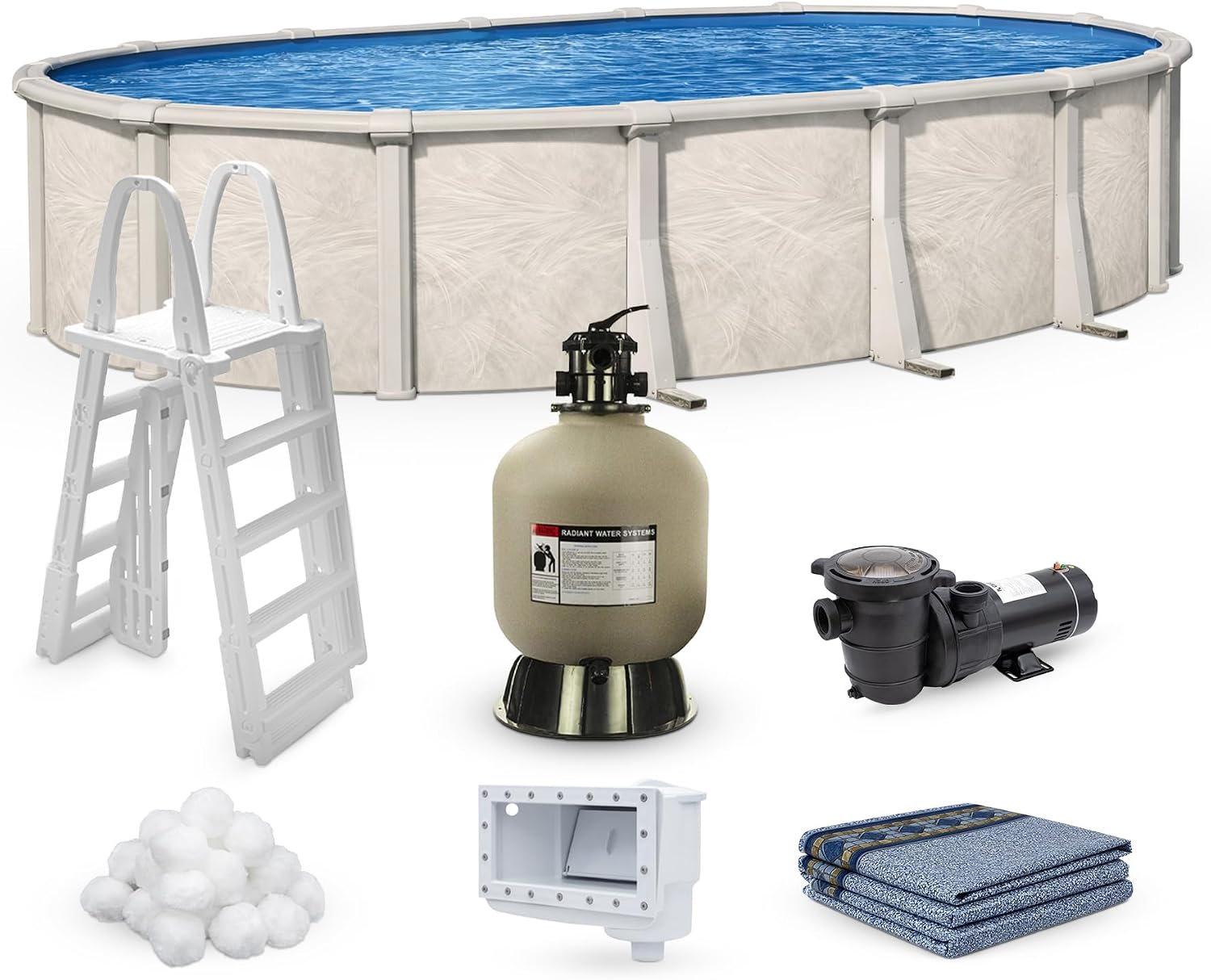

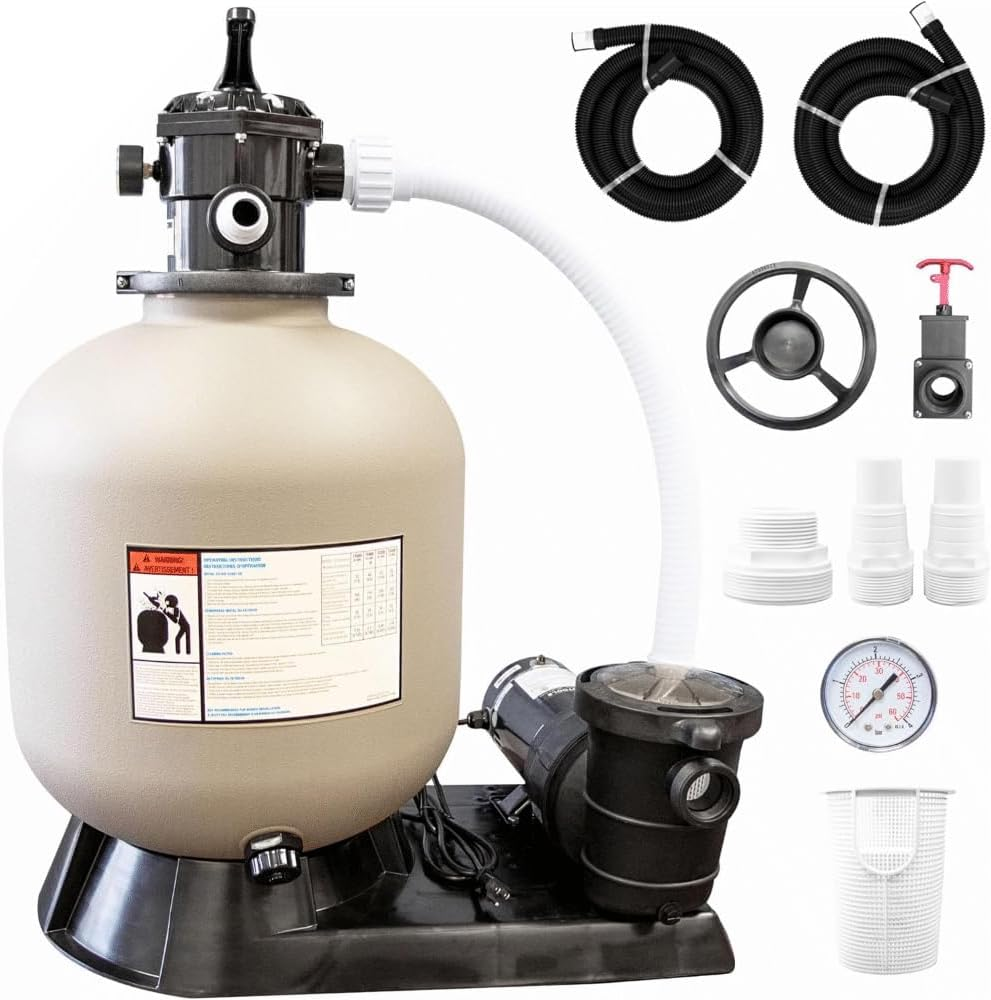

Designed with the DIY installer in mind, the Coastal series features a simplified assembly process. It utilizes a self-supporting omega stabilizer bar system that streamlines the framing process and eliminates the need for multi-sized hardware; a single, consistent screw type is used to lock the entire framing system together. This complete kit includes the primary structural walls, heavy-duty top and bottom rails, vertical uprights, and stabilizers, allowing you to easily customize your setup with your choice of pump, filtration systems, and interior vinyl liners to complete your ideal backyard oasis.

Technical Specifications

• Pool Shape: Oval

• Pool Dimensions: 15 feet (Width) x 30 feet (Length)

• Wall Height / Depth: 52 inches

• Wall Material: Corrugated heavy-duty steel panels

• Wall Joint System: Quadra-Fold locking system with reinforced bolting pattern

• Top Ledges (Top Seat): 6-inch heavy-duty steel rails

• Vertical Uprights: 5-inch heavy-duty steel uprights (28 total uprights)

• Bottom Rails: Premium corrosion-resistant resin rails

• Stabilizer Rails: Coated steel stabilizer rails

• Protective Finish: Multi-layer anti-corrosive coating with UV-resistant topcoat

• End Caps: Powder-coated vertical end caps (top and bottom)

• Support System: Self-supporting Omega stabilizer bar system

• Hardware System: Single-screw hardware design for simplified assembly

• Installation Type: Above-ground, do-it-yourself (DIY) compatible

• Safety Restriction: Designed for swimming only (strictly NOT intended for diving)

• Included Components: Steel pool walls, top rails, bottom rails, uprights, stabilizers, and assembly hardware
