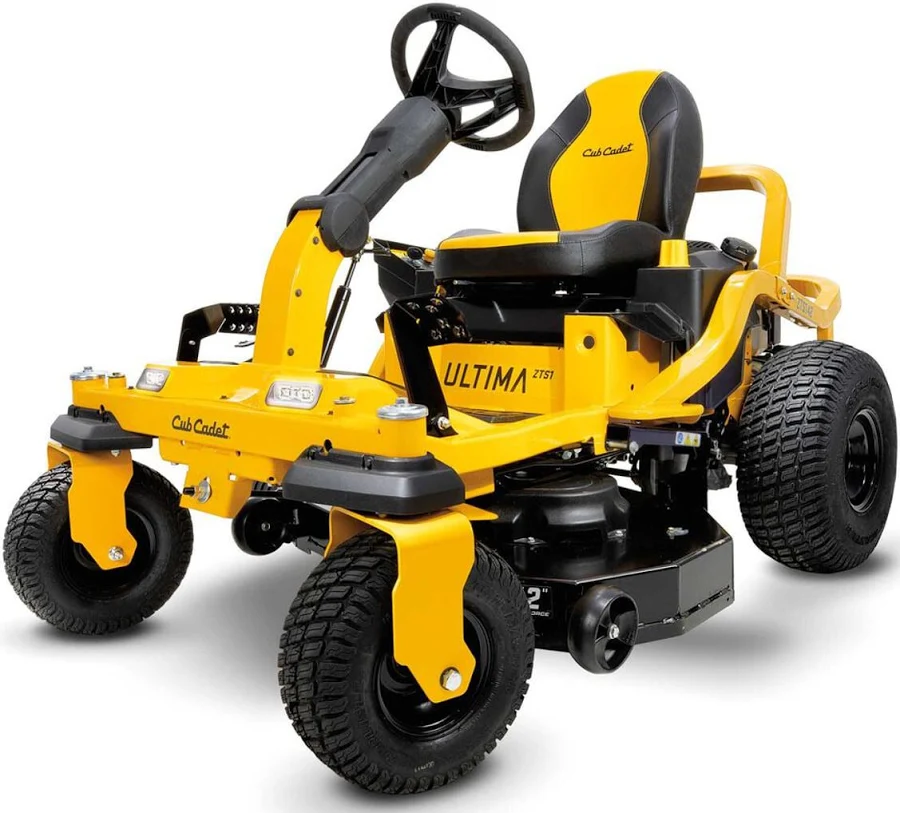

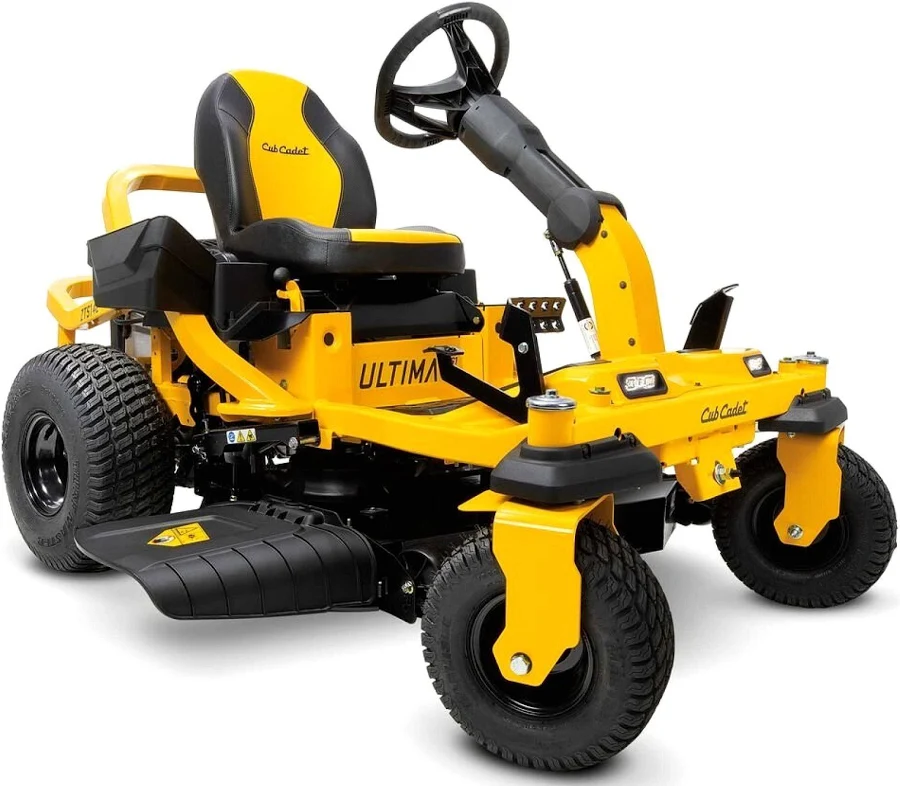

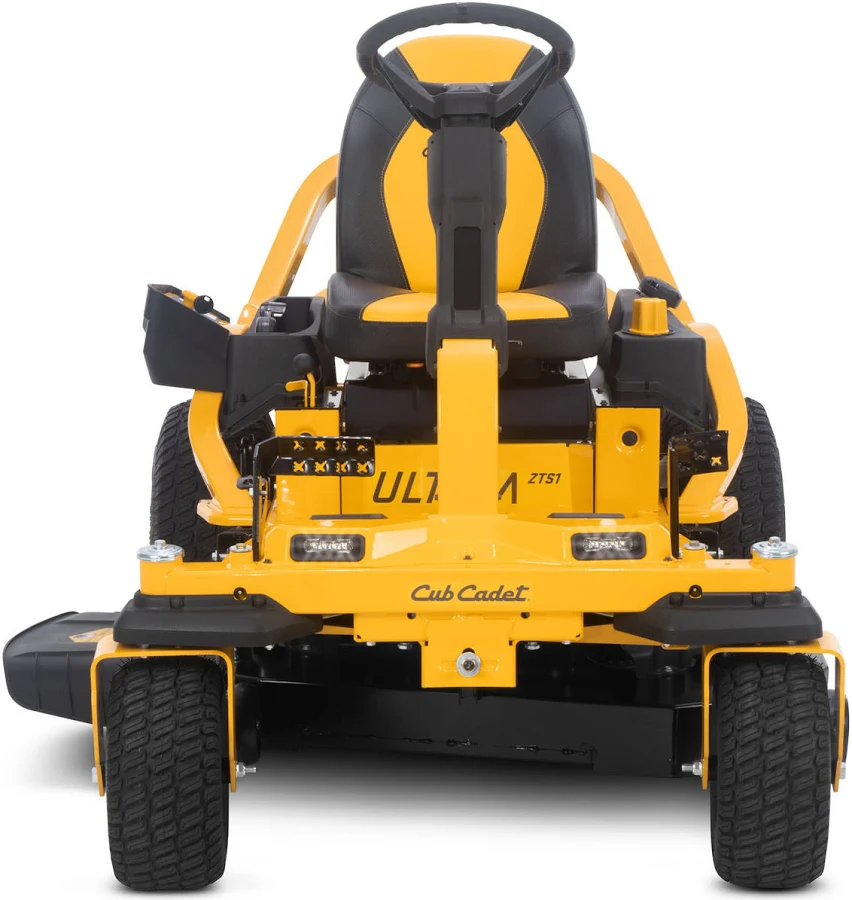

Cub Cadet Ultima ZTS1 22HP Kohler Zero Turn Mower 17argbyna10

The Cub Cadet Ultima ZTS1 Residential Zero-Turn Mower delivers professional-grade mowing power, exceptional structural strength, and unmatched hillside stability for homeowners managing large residential lawns. At the heart of this machine is the breakthrough Synchro-Steer technology, which utilizes a fully functional steering wheel to manage all four wheels simultaneously. This eliminates traditional lap bar steering controls and provides complete four-wheel control, giving operators straight-line precision and unrivaled traction on steep hillsides and slopes up to 20 degrees.

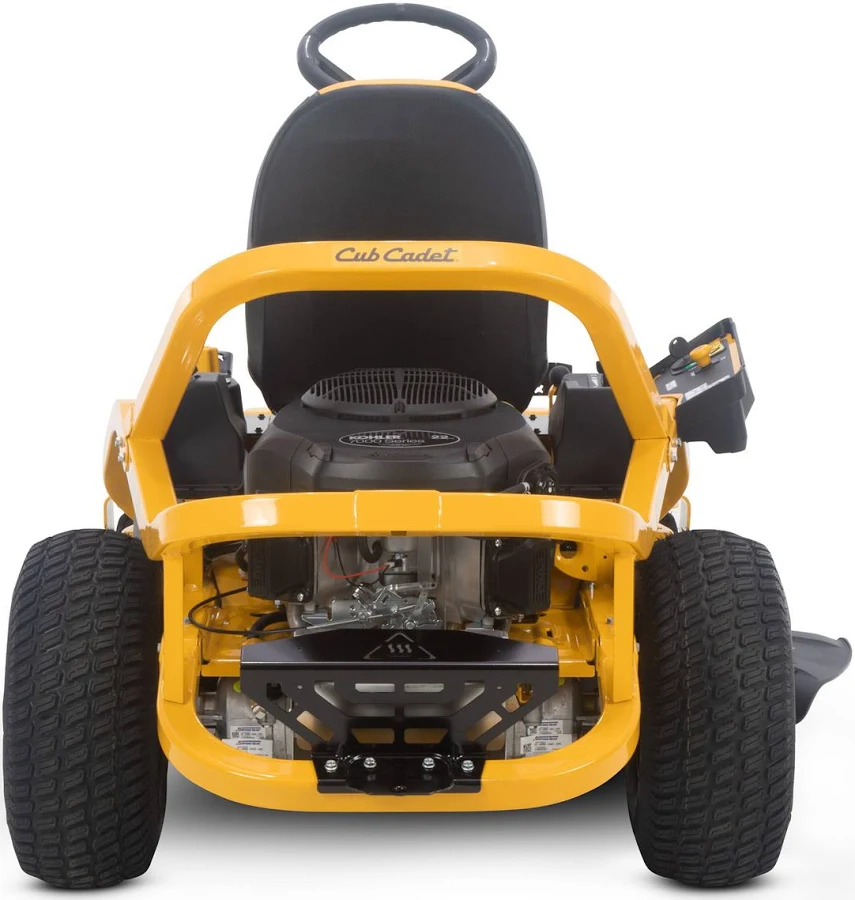

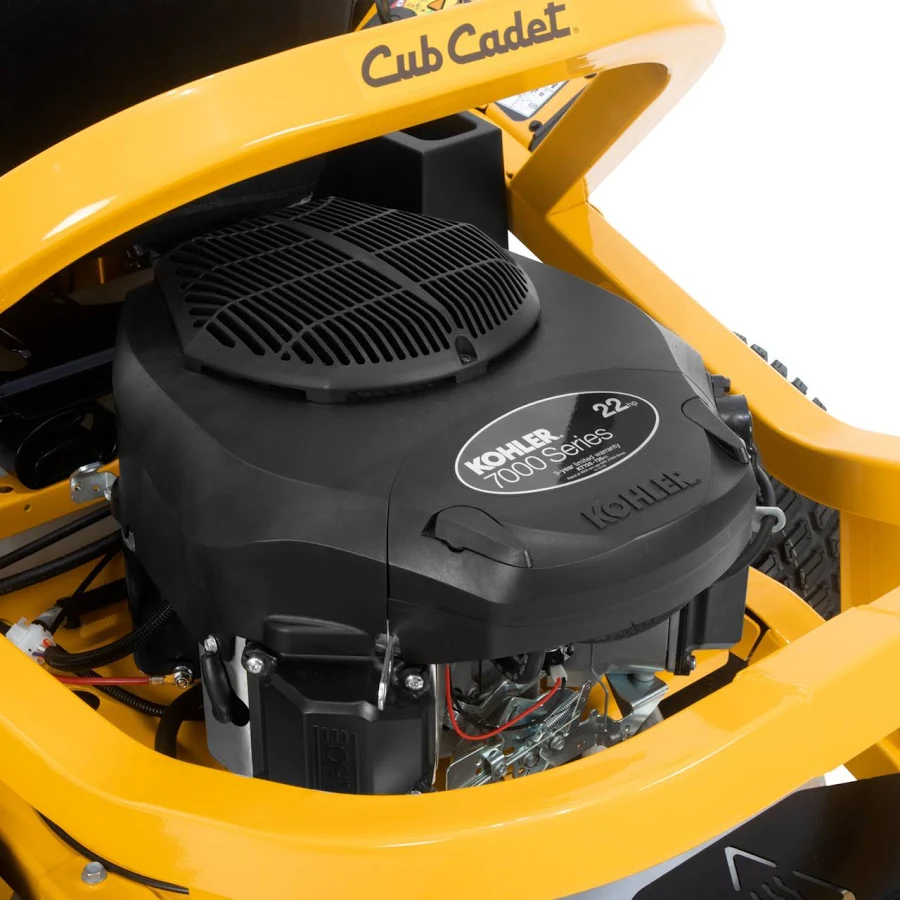

Equipped with a high-performance 22 HP Kohler 7000 Series V-Twin OHV engine, this zero-turn mower maintains smooth, quiet operation while delivering massive cutting torque through tall, dense grass patches. Dual hydrostatic Hydro-Gear EZT 2200 transmissions afford effortless ground speeds of up to 7 MPH forward and 3.5 MPH in reverse, drastically trimming down total mowing time. The heavy-duty 46-inch AeroForce fabricated cutting deck is stamped from dense 11-gauge steel, ensuring superior airflow that generates an exceptionally clean cut with fewer clumps, finer clippings, and a highly uniform yard finish.

Engineered to prioritize long-term operator endurance, the Ultima ZTS1 features a premium 20-inch adjustable high-back seat supported by advanced polymer seat isolators to dampen vibrations across rough, jagged terrain. A multi-step automotive-grade e-coat corrosion defense system blankets the continuous 2-inch by 2-inch square steel tubular frame, rendering it resilient against harsh rust and wear over time. Completed with ultra-bright dual-LED headlights and a simple foot-pedal operated deck lift, this unit ensures high visibility and user comfort through extended morning or evening cutting sessions.

Technical Specifications

• Model Number: 17ARGBYNA10

• Engine Brand: Kohler 7000 Series (Model KT722)

• Engine Displacement & Power: 747cc / 22 HP

• Cylinder Configuration: V-Twin

• Fuel Tank Capacity: 3.5 Gallons US (13.25 Liters)

• Steering Control: Steering Wheel with Synchro-Steer 4-Wheel Control

• Transmission Type: Dual Hydro hydrostatic (Hydro-Gear EZT 2200)

• Maximum Speeds: 7.0 MPH Forward / 3.5 MPH Reverse

• Turning Radius: 0-Degree Zero-Turn

• Cutting Deck Width: 46 Inches

• Deck Construction: Fabricated 11-Gauge Steel (AeroForce Design)

• Deck Engagement (PTO): Electric

• Number of Blades: 2

• Cutting Height Range: 1.0 Inch – 4.5 Inches

• Deck Height Adjustment: 15 Positions via Foot Pedal with Dial Adjust

• Anti-Scalping Protection: 2 Gauge Wheels

• Chassis Frame: 2″ x 2″ Continuous Square Tubular Steel Frame

• Corrosion Protection: Triple-Guard Automotive E-Coat System

• Seat Type: Fully Adjustable 20″ High-Back Seat with Polymer Isolators

• Front Tires: 13″ x 6.5″ – 6″ Turf Master

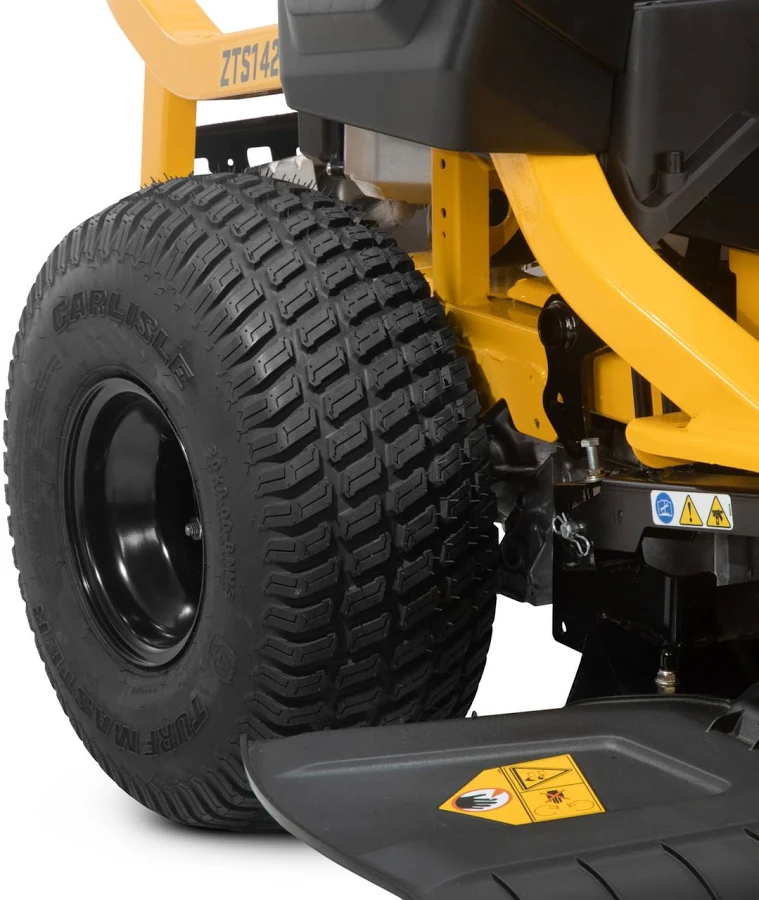

• Rear Tires: 20″ x 8″ – 8″ Turf Master

• Braking System: Disc Brakes with Hand Brake Lever

• Battery Type: 12V AGM Battery (210 Cold Cranking Amps)

• Lighting: Dual-LED Headlights

• Towing Hitch: Rear Tow Hitch Included

• Residential Warranty: 3-Year Unlimited Hours

• Frame & Deck Shell Warranty: Lifetime Limited
