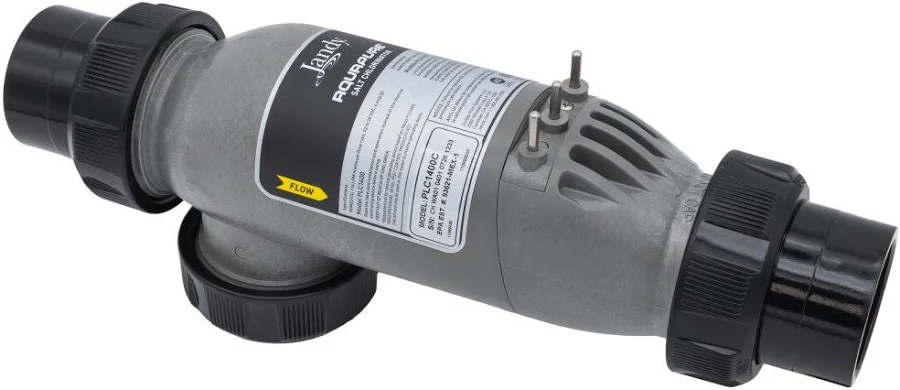

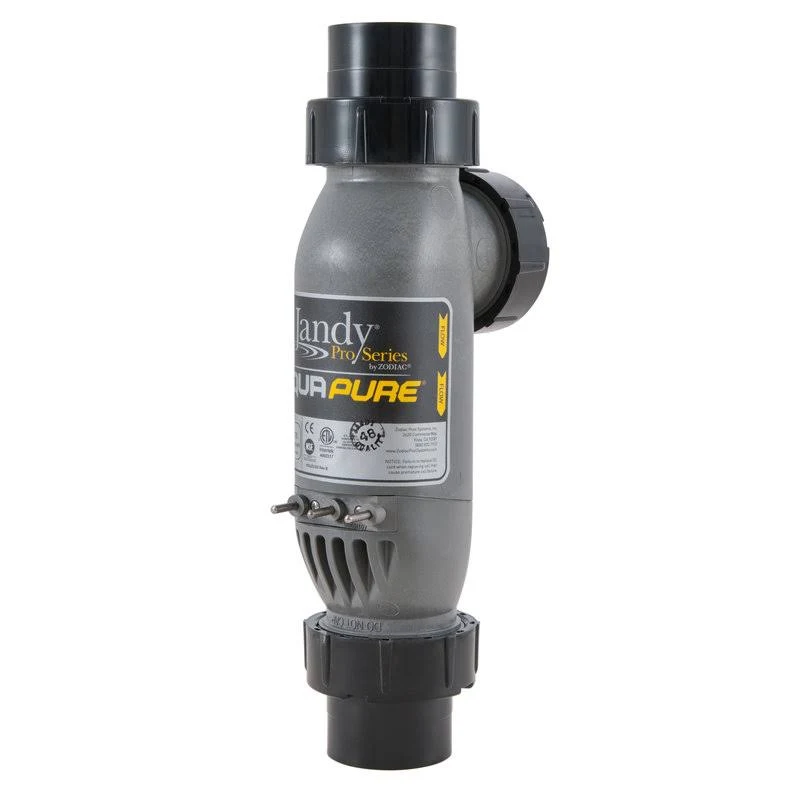

Jandy AquaPure PureLink Cell Kit PLC1400

The Jandy AquaPure PureLink Cell Kit PLC1400 is a premium, commercial-grade replacement electrolytic salt cell kit engineered to restore optimal sanitizing performance to your pool. Designed for inground swimming pools with a total capacity of up to 40,000 gallons, this high-performance cell converts natural salt into pure, active chlorine automatically, providing automated water purification without the harsh odors or chemical handling associated with traditional chlorine tablets. It serves as a direct genuine OEM replacement part for depleted cells within existing Jandy AquaPure Power Packs or PureLink Power Centers.

Constructed for durability and architectural versatility, the kit features a specialized 3-port housing that offers 90-degree plumbing flexibility, allowing it to be installed horizontally, vertically, in-line, or directly at a 90-degree elbow to accommodate tight equipment pads. Inside the housing, solid titanium electrode plates are manufactured with a proprietary ruthenium coating of precious metals to ensure efficient, long-term chlorine production while extending the overall lifespan of the cell. To further maximize runtime and reduce hands-on maintenance, the system is equipped with an automatic reversing cycle that periodically reverses electronic polarity to shed and prevent calcium scale buildup on the blades.

The PLC1400 is equipped with integrated tri-sensor technology that communicates real-time performance indicators directly to your control panel, monitoring crucial parameters including water flow, water temperature, and exact salinity levels. This advanced sensor system helps safeguard the pool equipment by instantly shutting down chlorine production if a low-flow or freezing condition is detected. The cell kit comes complete with a standardized 16-foot DC power cord featuring a 3-prong plug configuration, alongside universal unions that feature robust o-rings for a secure, leak-free retrofit. It connects seamlessly with Jandy AquaLink RS wired and wireless automation systems for remote monitoring, diagnostics, and customized super-chlorination boost modes.

Technical Specifications

• Model Number: PLC1400

• Brand / Manufacturer: Jandy / Zodiac

• Maximum Pool Capacity: Up to 40,000 gallons

• Pool Type: Inground (and compatible above-ground setups)

• Chlorine Production Output: 1.25 lbs per 24 hours (283 grams/day)

• Cell Configuration: 3-Port housing with 14 electrolytic blades

• Electrode Plate Material: Solid titanium with ruthenium precious metal coatings

• Recommended Water Flow Rate: 20 to 120 GPM (Gallons Per Minute)

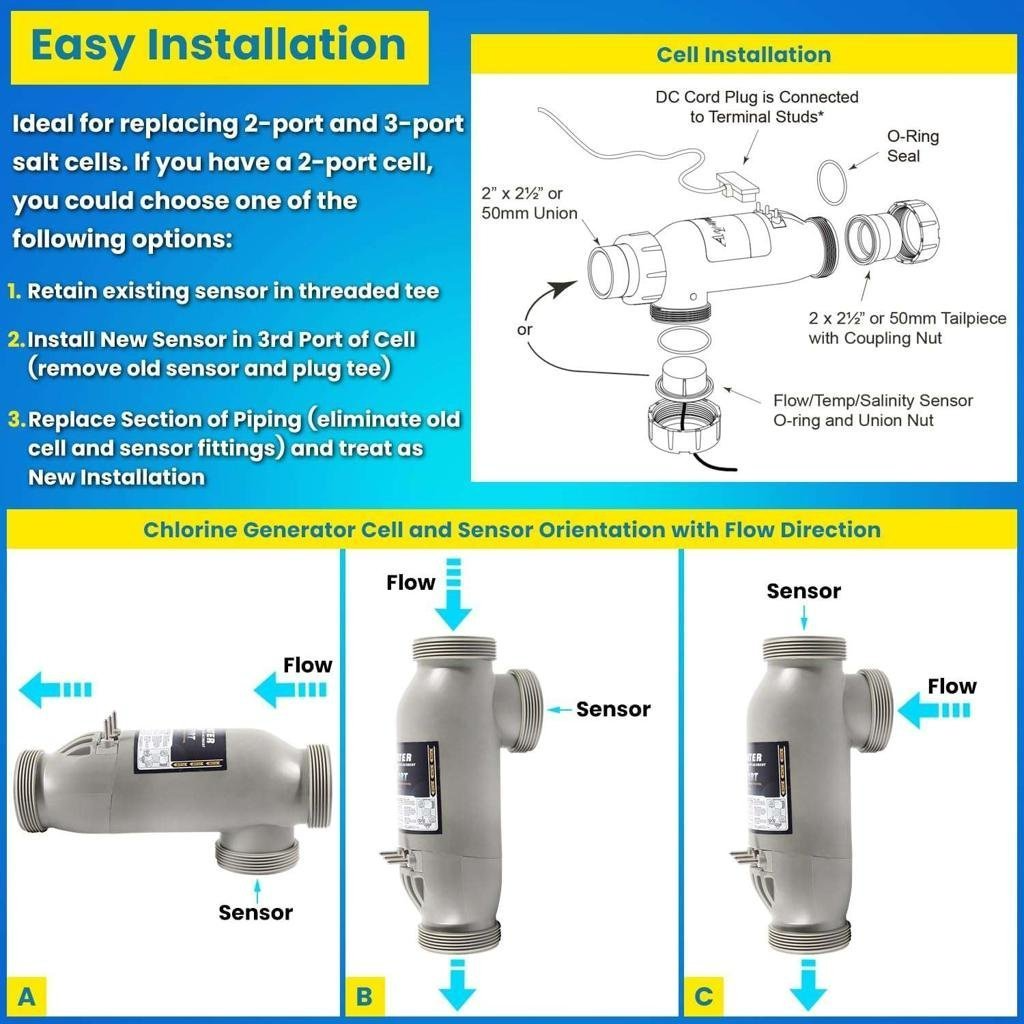

• Plumbing Flexibility: 90-degree configurations, inline, vertical, or horizontal

• Plumbing Connection Size: 2-inch slip x 2.5-inch spigot universal unions

• DC Power Cord Length: 16 feet (with standard 3-prong connection plug)

• Sensor Technology: Integrated Tri-Sensor (Flow, Temperature, and Salinity)

• Self-Cleaning Mechanism: Automatic reversing cycle to clear calcium and scale

• Input Power Requirements: 120V AC (50/60 Hz, 2.5 Amps) or 240V AC (50/60 Hz, 1.25 Amps)

• Output Power Rating: 22–30V DC at 3 to 6 Amps maximum

• Automation Compatibility: Jandy AquaLink RS, iAquaLink, AquaPure Power Pack, and PureLink Power Centers
