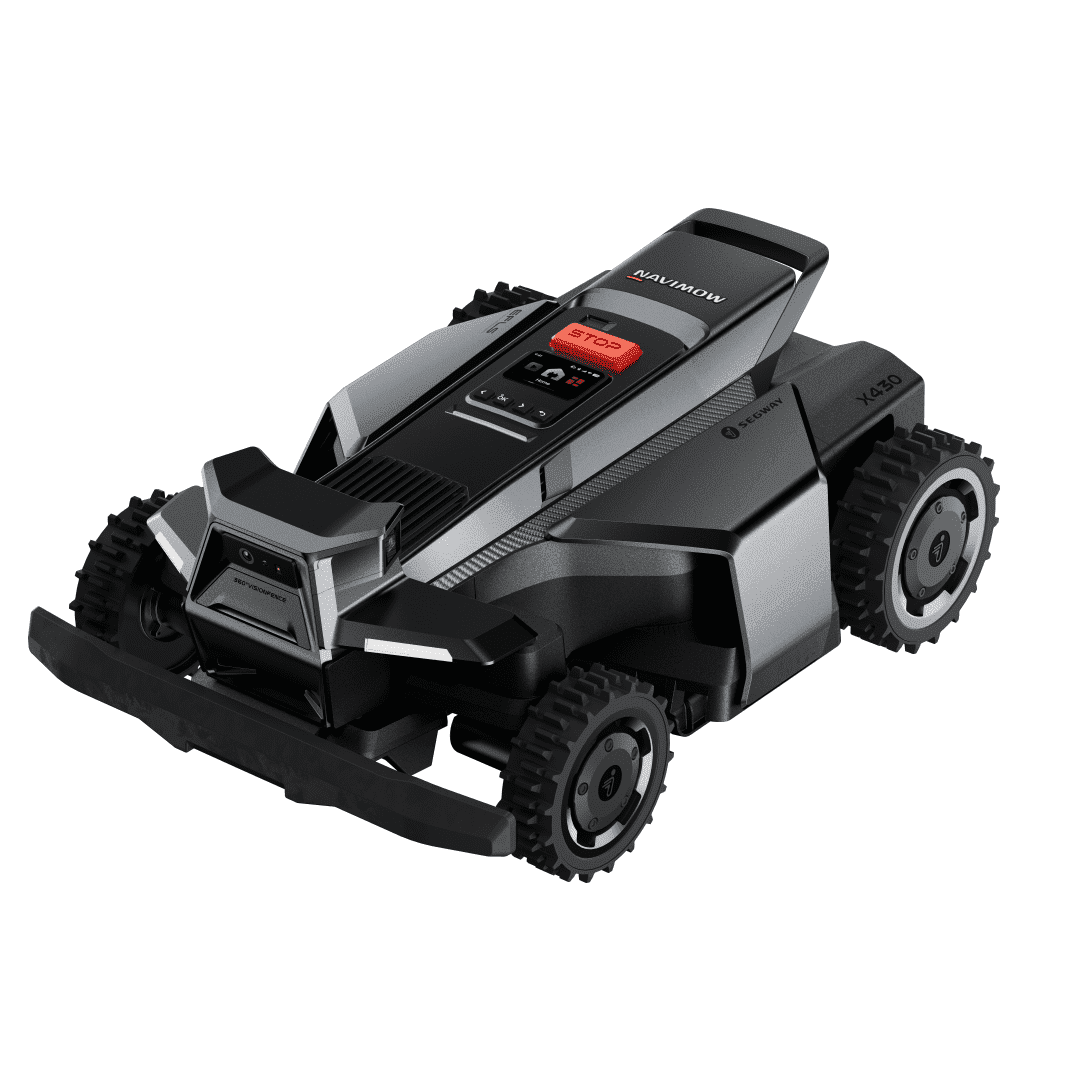

Navimow Segway x430 AWD Robot Lawn Mower

The Segway Navimow X430 AWD Robot Lawn Mower represents the pinnacle of residential turf maintenance, engineered specifically to manage large, structurally complex, and highly uneven yards completely wire-free. Designed for properties spanning up to 1 acre, this advanced autonomous machine removes the hassle of physical boundary wires or external base station antennas. It relies on a pioneering combination of tri-frequency Network RTK satellite positioning, 360-degree VSLAM camera vision, and Visual Inertial Odometry (VIO). This intelligent triangulation guarantees continuous centimeter-level tracking accuracy, allowing the mower to navigate seamlessly underneath thick tree canopies, narrow property passes, and areas adjacent to tall building structures where standard satellite signals typically fail.

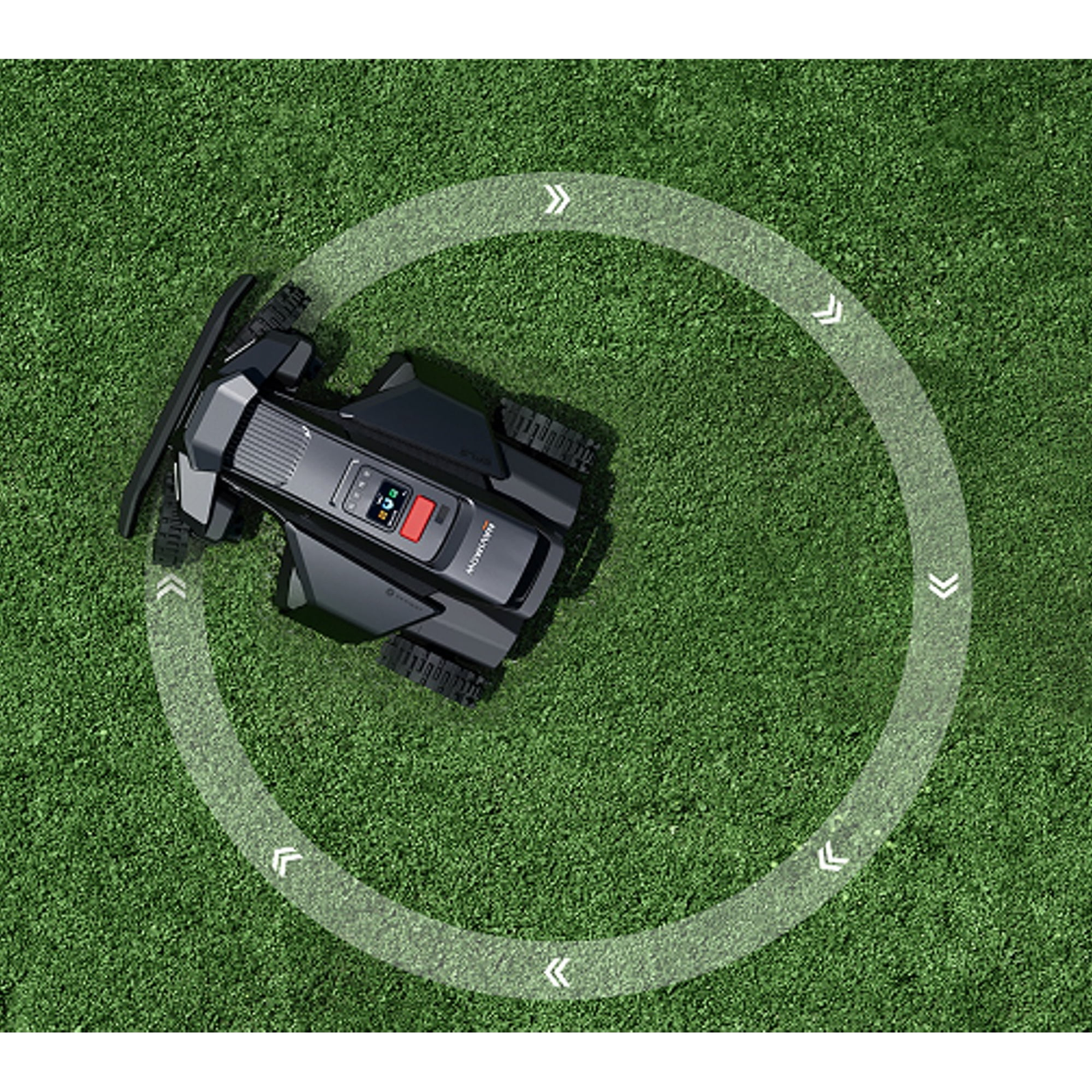

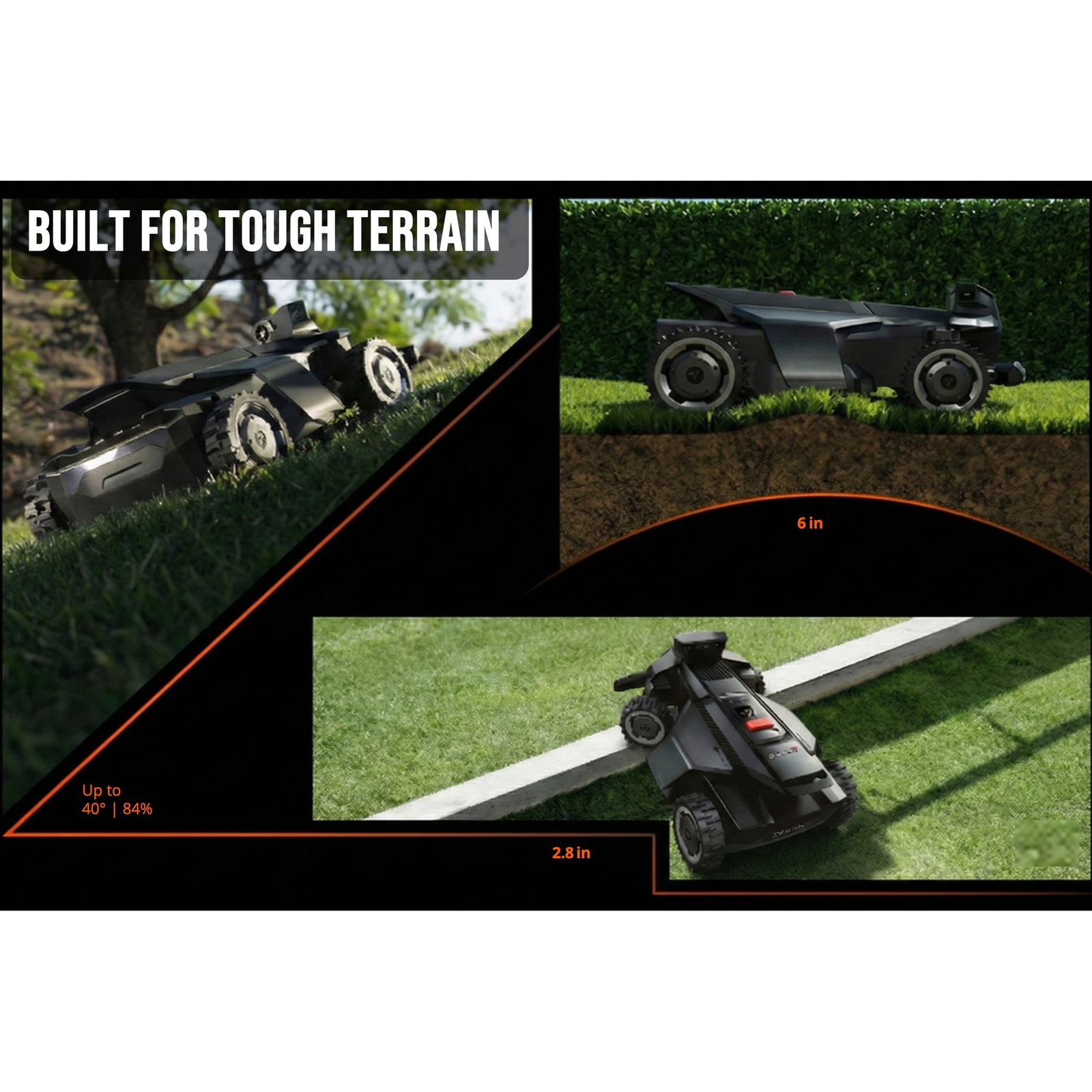

At the core of its all-terrain capabilities is the next-generation Xero-Turn All-Wheel Drive system. Guided by dual independent steering motors and balanced with a 5:5 center-of-gravity distribution, the X430 tackles aggressive slopes reaching up to an 84% (40-degree) incline with complete stability. Unlike traditional skid-steer robotic mowers that drag their wheels and rip up delicate turf during sharp pivots, the Xero-Turn mechanism utilizes eccentric steering to pivot smoothly without scuffing the grass. Coupled with a dual independent suspension network, the mower glides over deep potholes, transitions between gravel paths, and steps over vertical yard obstacles up to 2.8 inches tall.

Safety and environment tracking are managed through an integrated 360-degree VisionFence system. Combining high-definition RGB panoramic cameras with Time-of-Flight (ToF) depth sensors, the machine recognizes and dynamically charts a course around more than 200 distinct objects in real-time—including wandering pets, children’s toys, dropped lawn tools, and patio furniture. The mower calculates reactive distance adjustments down to a fraction of a second and functions precisely even during night operations. Initial deployment requires only a single tap within the smartphone application using real-scene Auto Mapping. Users can custom-edit up to 120 zones, construct digital paths, and map off-limit regions utilizing top-down GeoSketch controls.

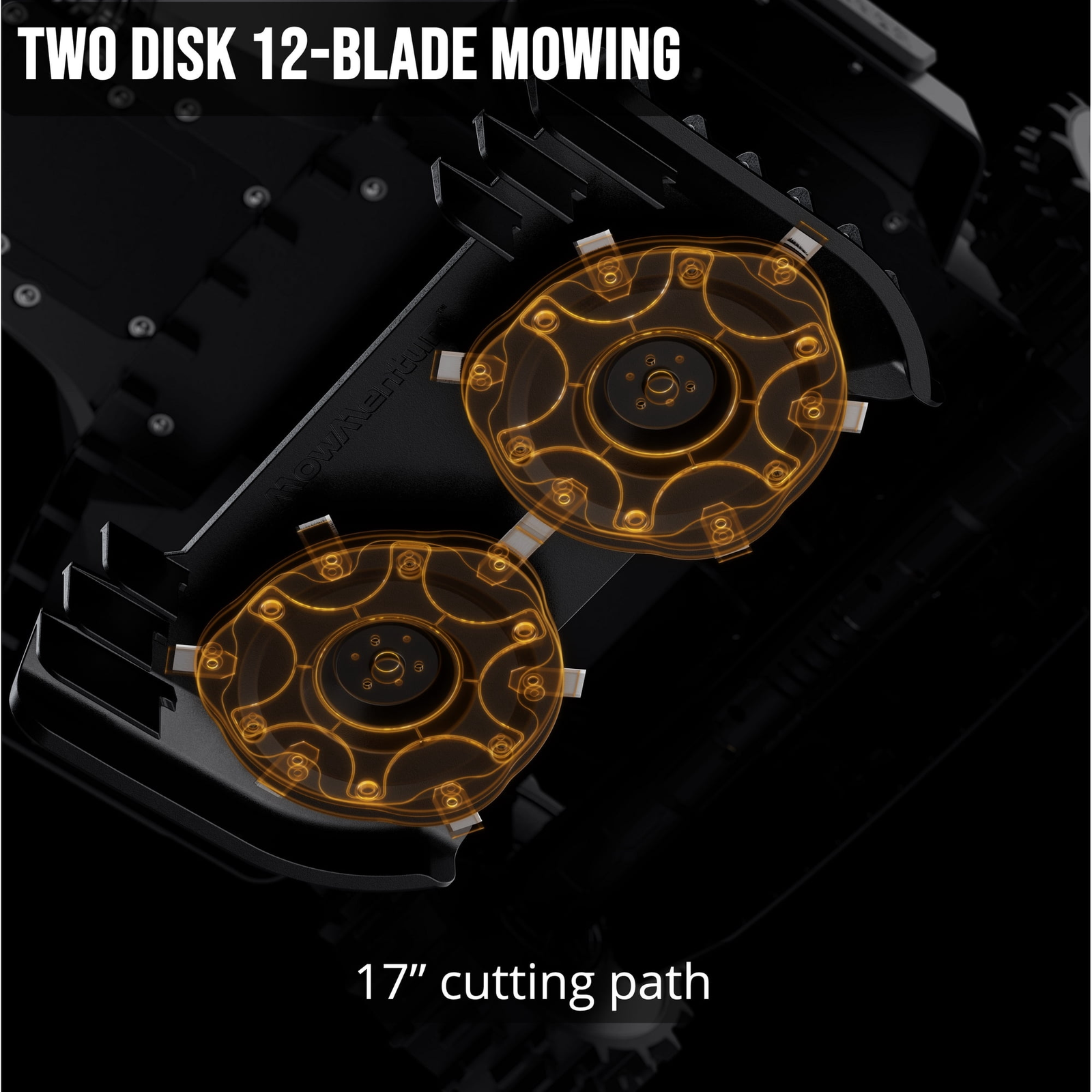

Equipped with a hyper-efficient dual-disc cutting deck powered by twin 180-watt high-performance motors, the X430 spans a wide 17-inch cutting path. This configuration chews effortlessly through thick, tall, or wet grass blades, automatically self-adjusting its cutting height from 0.75 inches up to 4 inches based on user presets. To maintain lawn health and ensure clean aesthetic patterns, the smart cutting algorithm programmatically shifts its mowing angle by approximately 30 degrees during successive schedules, avoiding deep wheel ruts and preventing grass blades from growing permanently in a single flat direction.

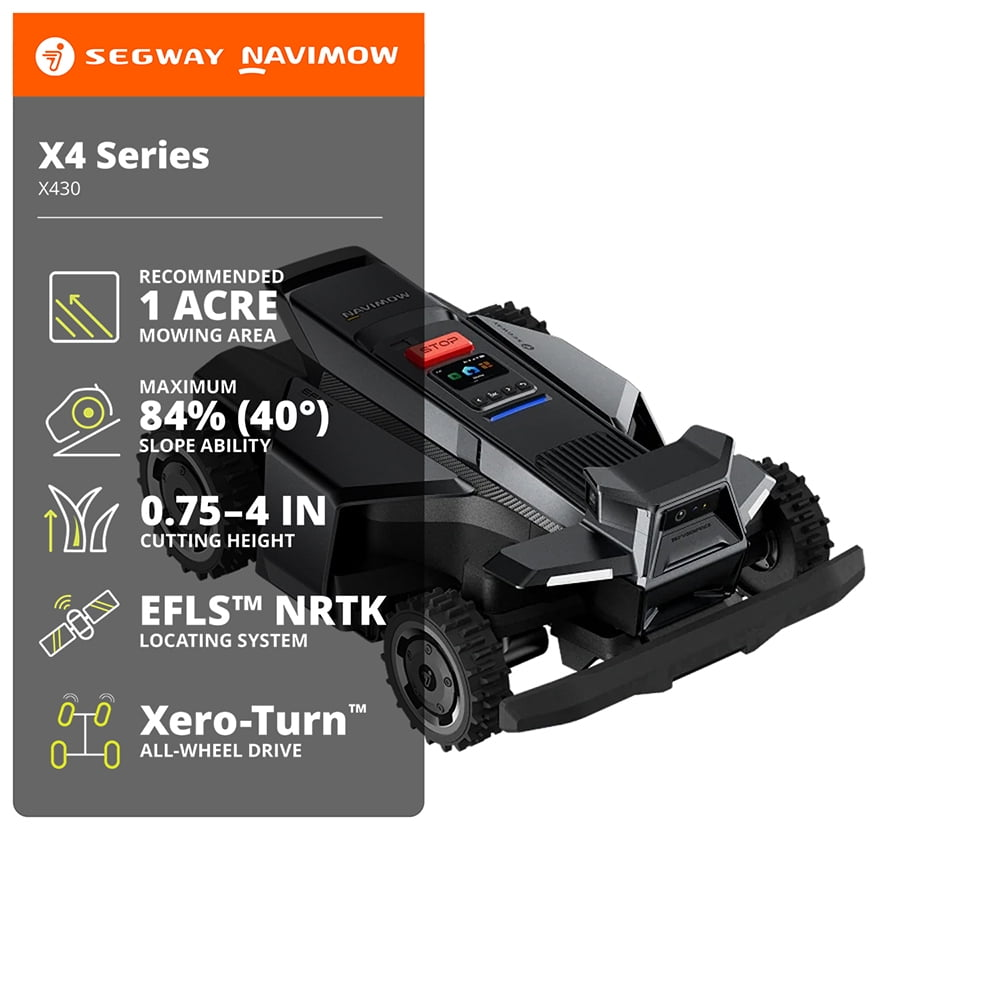

Technical Specifications

• Recommended Mowing Area: Up to 1.0 Acre (43,560 sq ft)

• Drive System: Xero-Turn All-Wheel Drive (AWD) with dual independent steering motors

• Suspension System: Dual independent all-terrain suspension

• Navigation System: EFLS Network RTK (Tri-frequency satellite + 360° Vision Camera + VIO)

• Obstacle Avoidance: 360° VisionFence AI Technology (RGB + Time-of-Flight 3D sensors)

• Boundary Method: Completely Wire-Free Virtual Boundaries with Auto Mapping & GeoSketch

• Maximum Slope Capacity: 84% / 40 Degrees

• Vertical Obstacle Clearance: Up to 2.8 inches (7 cm)

• Cutting Width: 17 inches (430 mm)

• Cutting Height Range: 0.75 inches to 4.0 inches (Electronically adjusted via App)

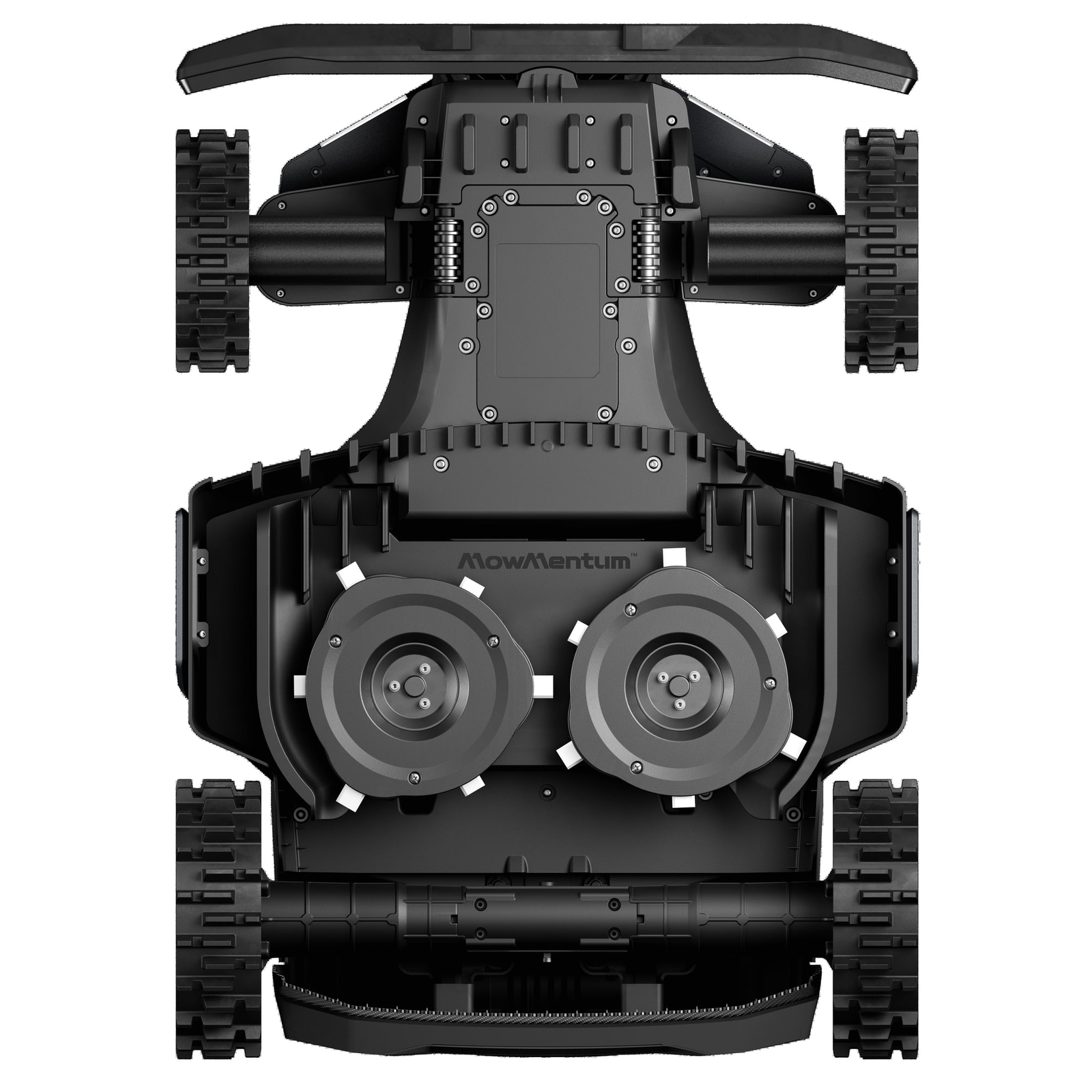

• Cutting Mechanism: Dual-disc cutting decks powered by two 180W motors (12 reversible blades total)

• Multi-Zone Management: Supports up to 120 independent custom lawn zones

• Battery Capacity: 10 Ah / 12.8 Ah High-Capacity Lithium-Ion

• Mowing Runtime per Charge: Approximately 110 minutes

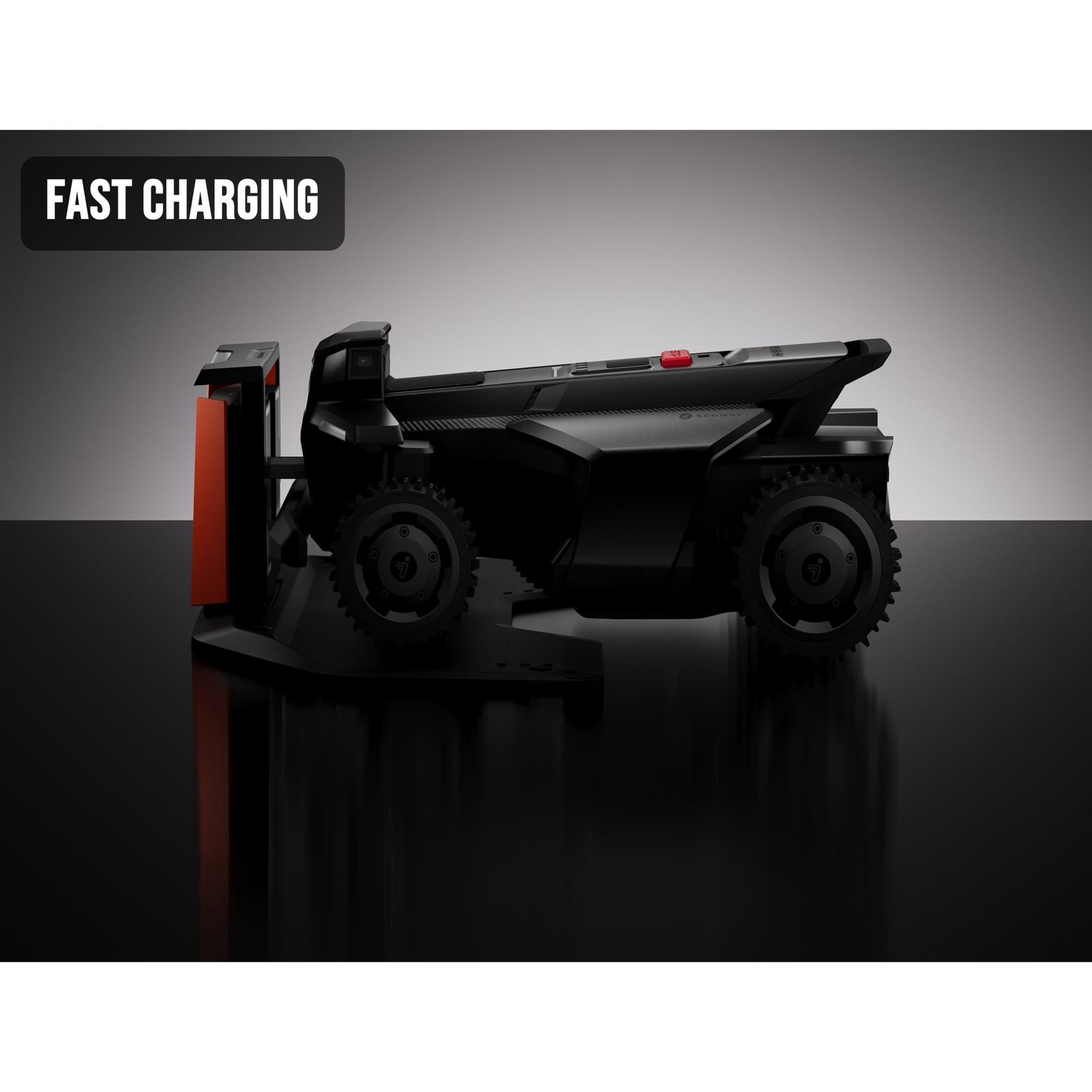

• Charging Time: ~75 to 90 minutes (224W Fast Charging System)

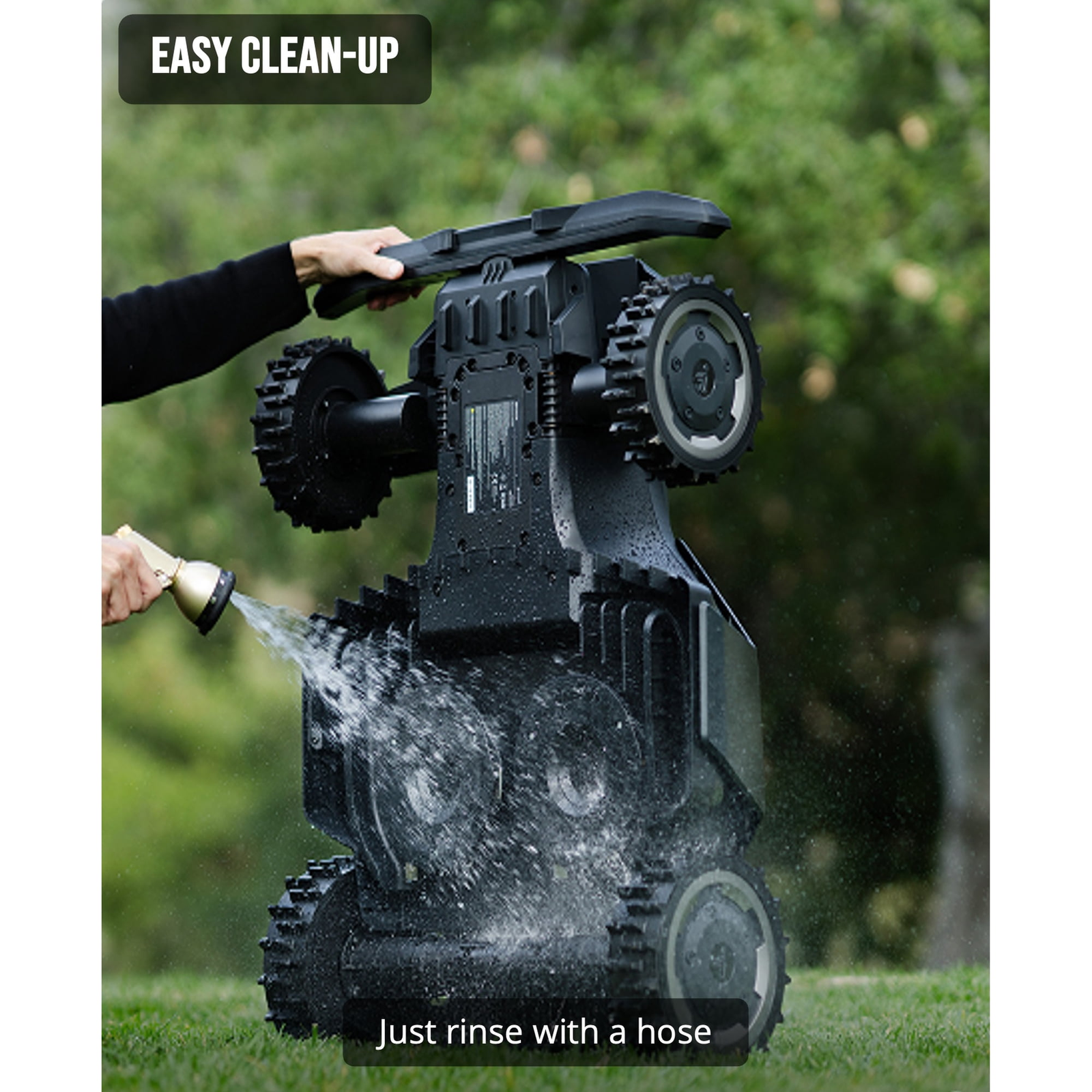

• Chassis Protection Level: IP66 Certified Dust & High-Pressure Water Jet Resistant

• Noise Output Level: Less than or equal to 68 dB(A)

• Connectivity Systems: 4G LTE Cellular (Connect+ Built-in), Wi-Fi, Bluetooth

• Smart Home Integration: Amazon Alexa, Google Assistant

• Security Framework: Quad-layer anti-theft (Real-time GPS tracking, out-of-boundary alarms, lift sensors, proximity smartphone unlock, encrypted PIN code protection)

• Product Dimensions (L×W×H): 33.5 x 24.0 x 13.8 inches

• Machine Weight: 63.7 lbs
