Peco ZT-3100 Z-Trimmer Zero Turn Mower String Trimmer Attachment

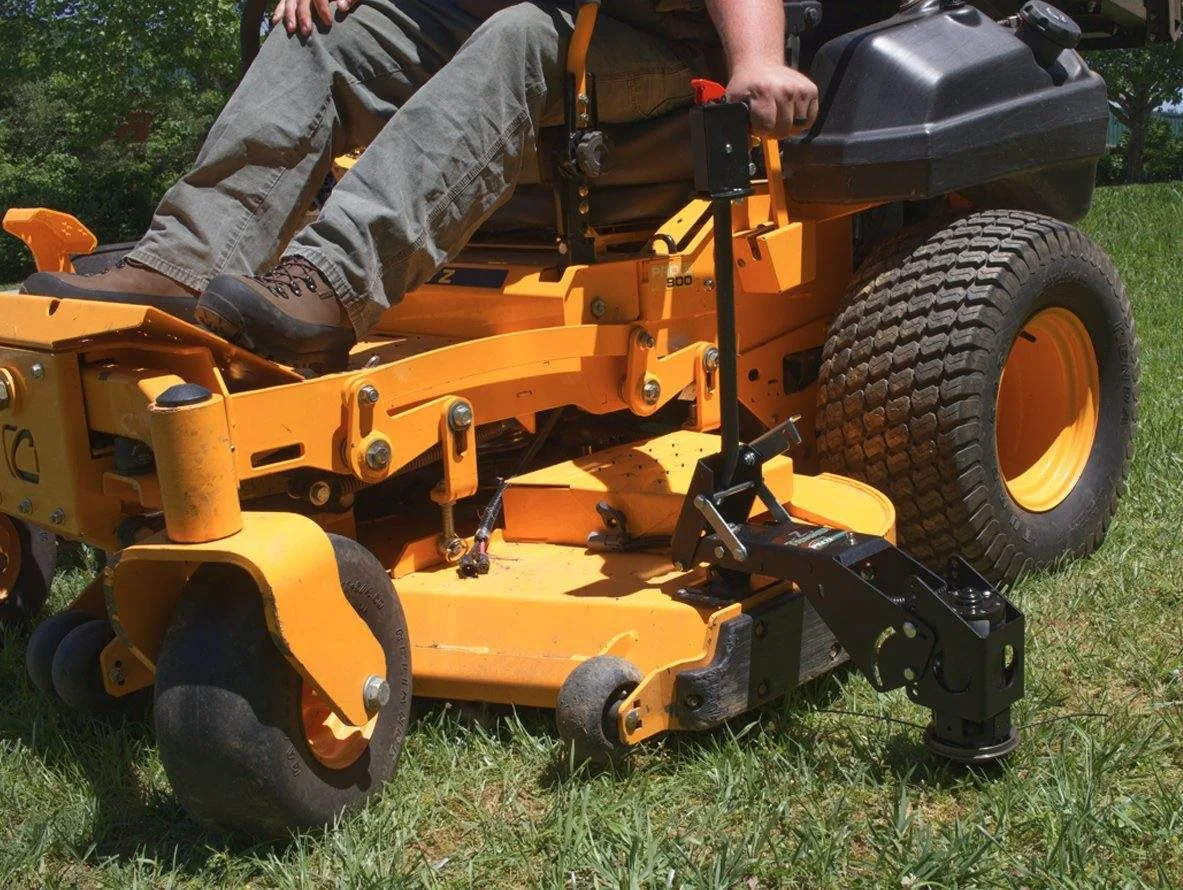

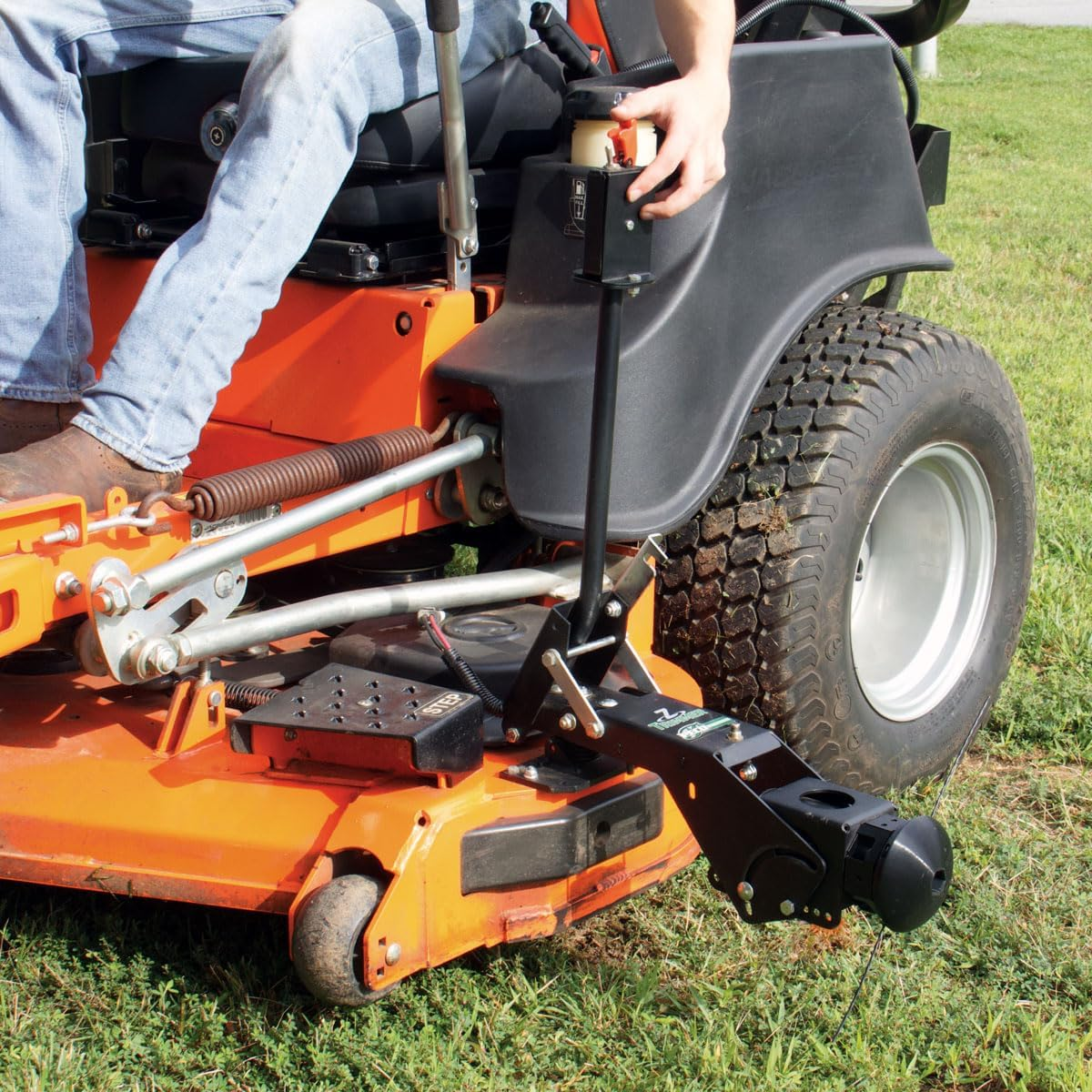

The Peco ZT-3100 Z-Trimmer Zero Turn Mower String Trimmer Attachment is an innovative lawn care solution engineered to maximize productivity by allowing users to trim and edge simultaneously while mowing. Designed to mount directly onto the deck of a riding or zero-turn mower, this professional-grade attachment eliminates the need for a secondary walk-behind trimmer on regularly maintained landscape areas. It operates seamlessly from the operator’s seat, letting users clean up fence lines, property borders, and building perimeters without ever stepping off the machine.

Constructed with a rugged yet lightweight design, the Z-Trimmer features a spring-loaded, mechanical breakaway mounting system. This design allows the trimmer arm to automatically swing backward out of harm’s way when encountering rigid obstacles like fence posts or trees, protecting both the attachment and the property from impact damage. For maximum versatility, it boasts a 140-degree pivoting trimmer head that shifts seamlessly from horizontal grass trimming to vertical edge cutting with a quick, tool-free adjustment.

Powering the attachment is a high-torque 12-volt DC electric motor equipped with a sealed end cap to keep out moisture, dust, and clipping debris. The unit runs directly off the mower’s integrated battery and charging system. When moving across properties or during standard mowing patterns where trimming isn’t required, the trimmer easily folds up into a secure, upright transport position where it safely locks into place without adding extra width to the mower deck. Safety enhancements include a high-visibility aviation-style toggle switch cover, a built-in safety kill switch, and a dynamic resettable circuit breaker that prevents any unwanted overdrawing of the vehicle’s battery.

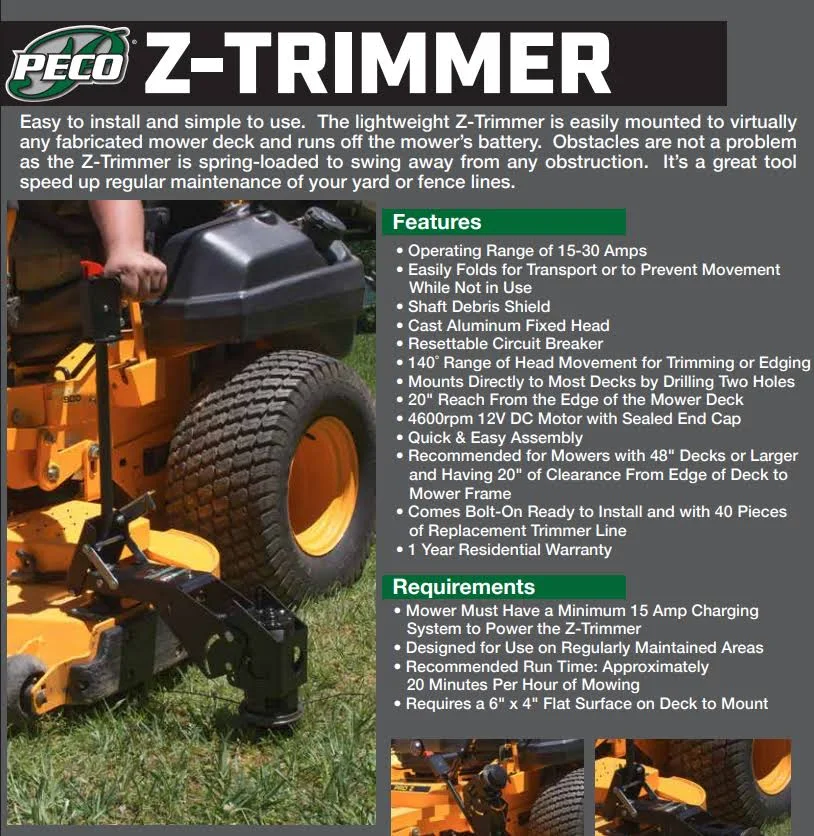

Technical Specifications

• Model Number: ZT-3100

• Motor Type: 12V DC Electric Motor with Sealed End Cap

• Motor Speed: 4,600 RPM

• Electrical Demand: 15 – 30 Amps

• Minimum Vehicle Charging System Requirement: 15 Amp alternator/charging capability

• Electrical Protection: Integrated resettable circuit breaker

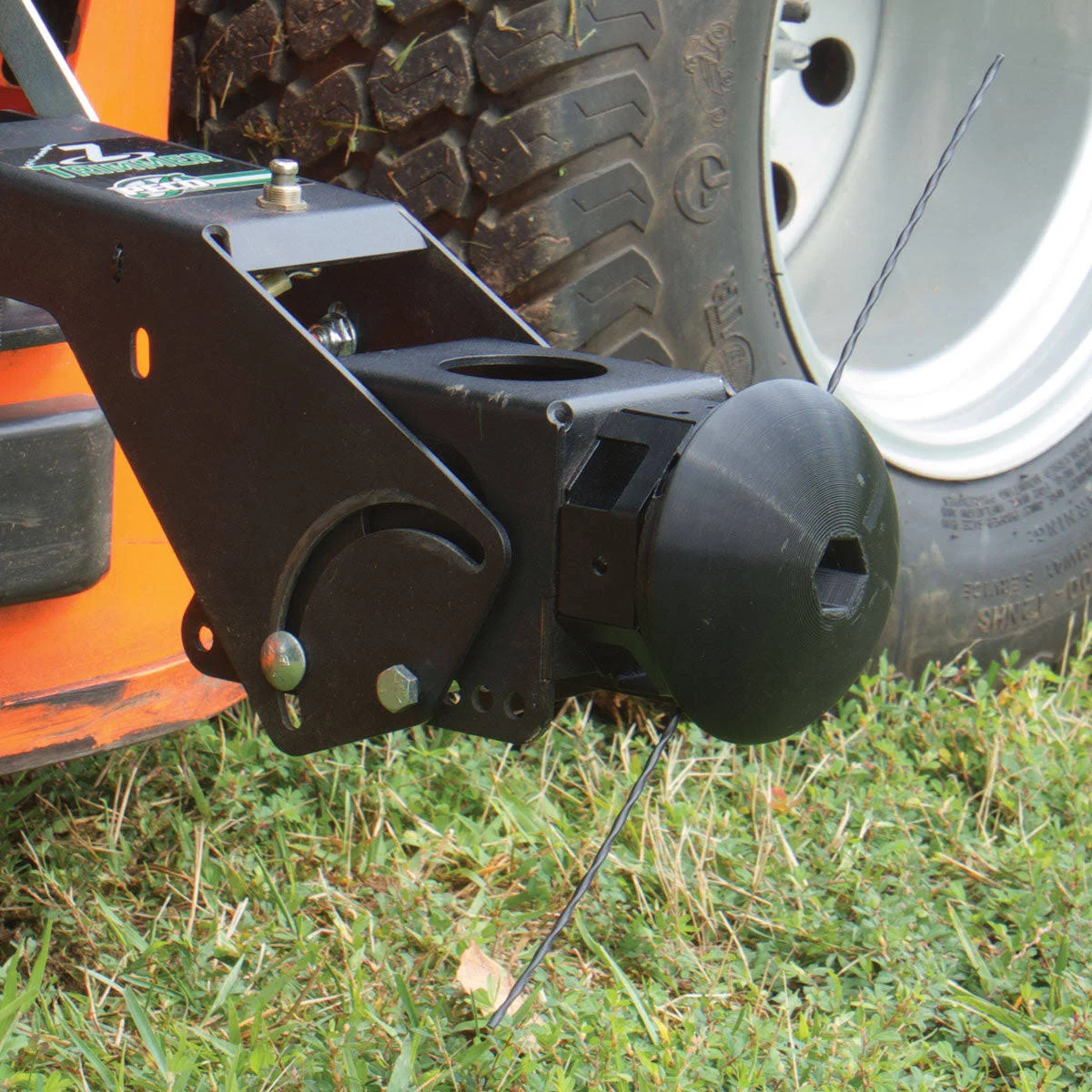

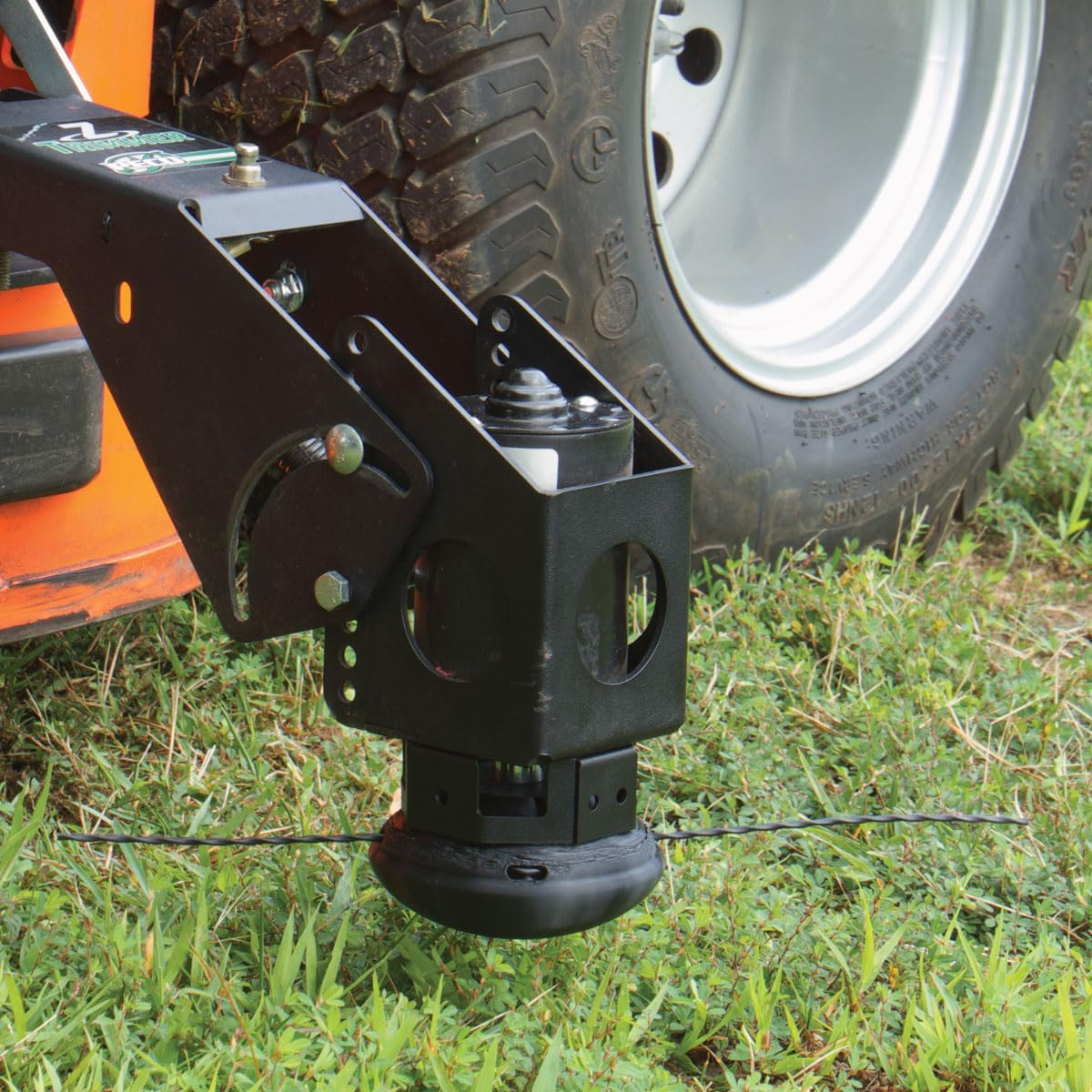

• Trimmer Head Range of Motion: 140-degree pivoting arc (Trimming to Edging alignment)

• Safety Mechanism: Spring-loaded mechanical breakaway action

• Stowage System: Vertical transport lock with built-in safety switch

• Trimmer Line Type: Fixed-line head compatible with pre-cut .095″ or .105″ professional line

• Maximum Recommended Line Length: 6 inches per side of the trimmer head

• Recommended Mower Deck Footprint: Fits 48-inch cutting decks or larger

• Mower Frame Clearance Requirement: Minimum 20 inches of flat clearance from deck edge to mower frame

• Mounting Footprint: Requires a 6″ x 4″ flat surface area on the mower deck

• Installation Hardware: Bolt-on ready configuration (requires drilling 4 deck mounting holes)

• Operational Trim Speed: Optimal performance achieved at ground speeds around 1 MPH

• Recommended Duty Cycle: Approximately 20 minutes of runtime per mowing hour
