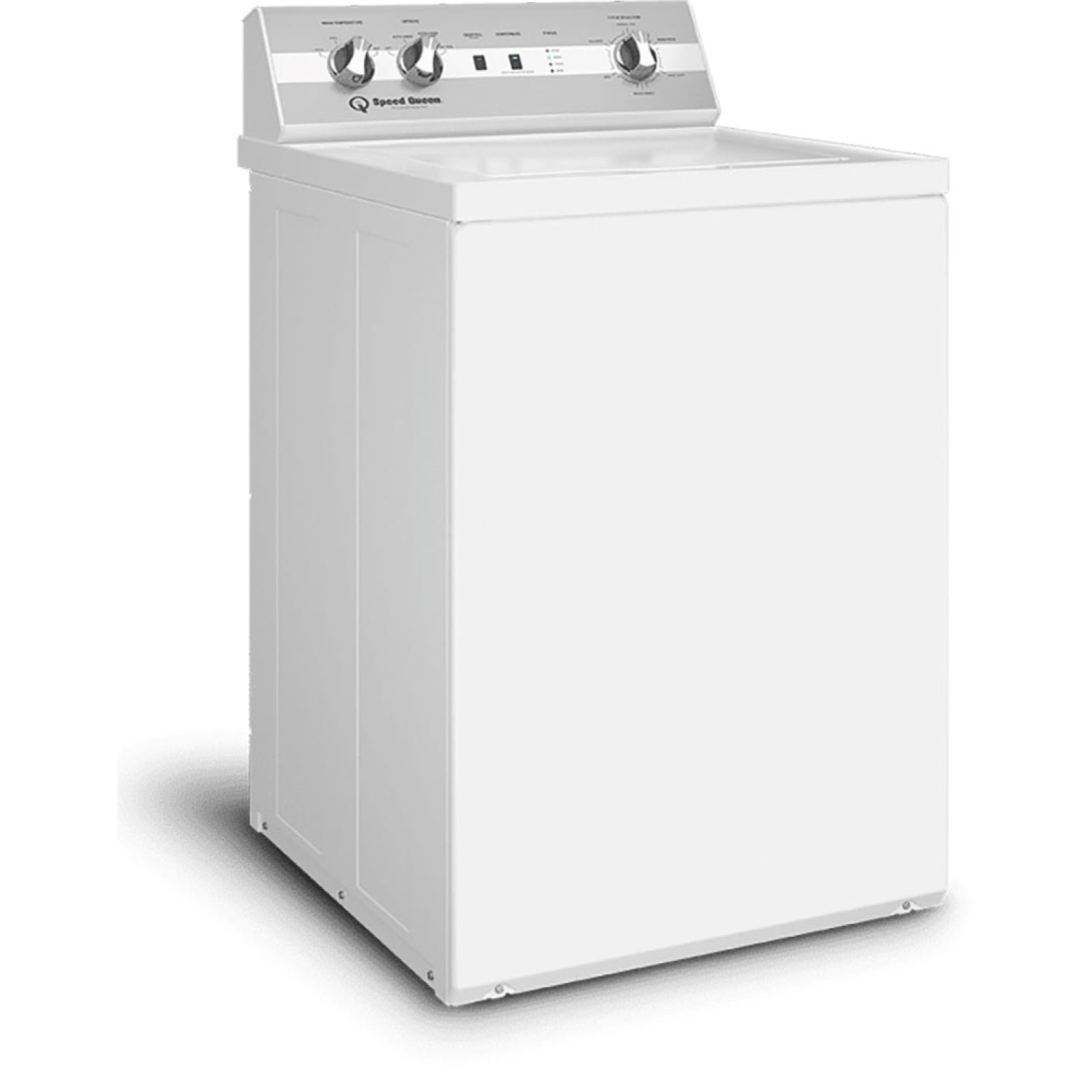

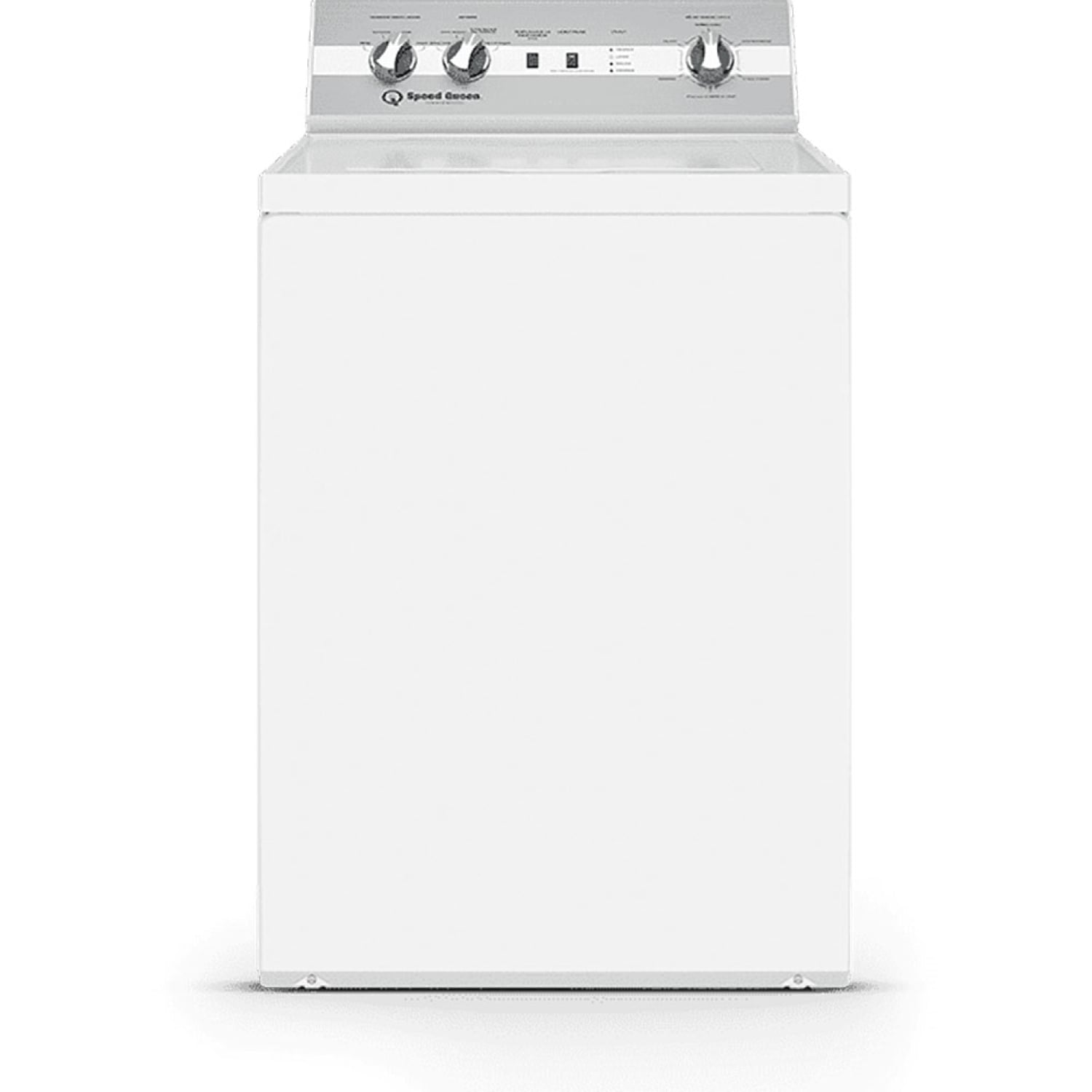

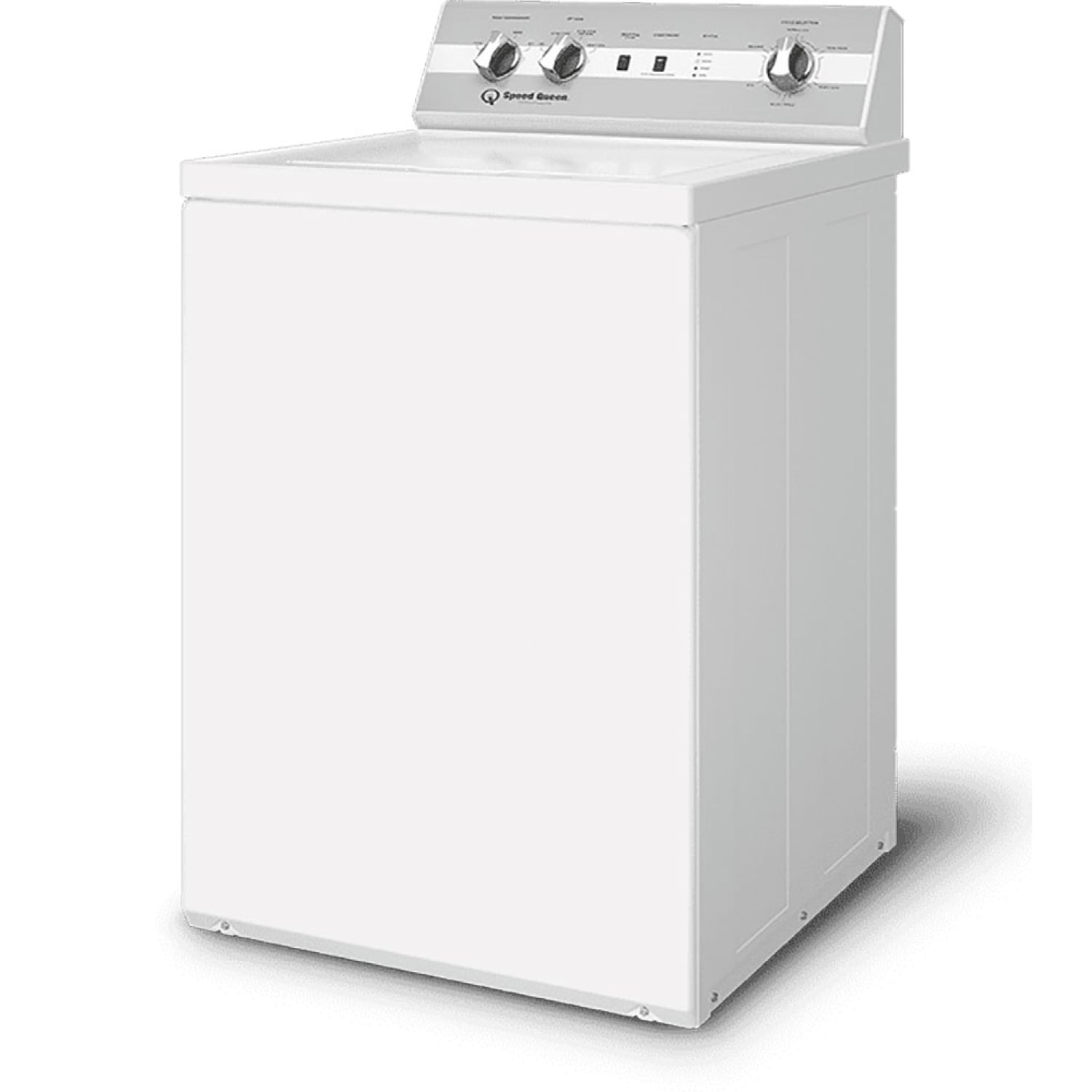

Speed Queen TC5 3.2 Cu. ft Top Load Washer

Product Description

The Speed Queen TC5 Top Load Washer features the renowned Speed Queen Classic Clean system, engineered to deliver commercial-grade performance and exceptional durability directly to your residential laundry room. Built with no-nonsense mechanical controls and heavy-duty components, this washer is designed and tested to withstand up to 10,400 cycles, translating to roughly 25 years of reliable home operation. Unlike conventional modern washers, it foregoes complex digital touchscreens and instead utilizes robust analog knobs for straightforward, hassle-free navigation.

At the heart of the TC5 is a traditional transmission-driven wash action that powers a classic center agitator. This system produces an aggressive 210-degree stroke at 60 strokes per minute, vigorously moving water and detergent through fabrics to lift away stubborn stains and embedded soil quickly. A defining advantage of this model is the complete absence of a lid lock. This design enables you to freely lift the lid to add forgotten garments, extra detergent, or fabric softener at any point during the wash cycle without forcing a machine pause.

To handle varying fabrics and laundry demands, the washer offers 6 preset cycles, 4 water temperature selections, and a dedicated Deep Fill option. The Deep Fill function bypasses standard water-conservation limits to completely submerge large or heavily soiled items, ensuring a thorough saturate-and-rinse sequence. Structurally, the machine utilizes a solid-mount suspension system constructed with a full steel base and heavy-duty springs, ensuring exceptional out-of-balance management, minimal vibration, and stable operation even during high-velocity spin cycles.

Technical Specifications

• Model Number: TC5003WN (White) / TC5003BN (Matte Black)

• Total Capacity: 3.2 cubic feet

• Width: 25-5/8 inches

• Depth: 28 inches

• Height: 42-3/4 inches

• Height with Lid Open: 53 inches

• Wash System: Speed Queen Classic Clean (Transmission-Driven Agitator)

• Agitator Stroke: 210 degrees (60 strokes per minute)

• Wash Tub Material: Stainless Steel

• Outer Draintub Material: Porcelain

• Motor Power: Two-Speed, 1/2 HP Direct Drive Motor

• Maximum Spin Speed: 710 RPM

• Preset Wash Cycles: 6 (Heavy Duty, Permanent Press, Delicate, Normal Eco, Quick Wash, Soak)

• Water Temperature Settings: 4

• Load Size Selections: 2 (including Deep Fill Option)

• Soil Level Selections: 2

• Suspension System: Solid Mount Suspension System with Heavy-Duty Springs

• Balancing System: Automatic Balancing System

• Lid Lock: No (Lid remains unlocked throughout the cycle)

• Dispensers: Built-in Bleach Dispenser, Fabric Softener Dispenser

• End-of-Cycle Signal: Yes

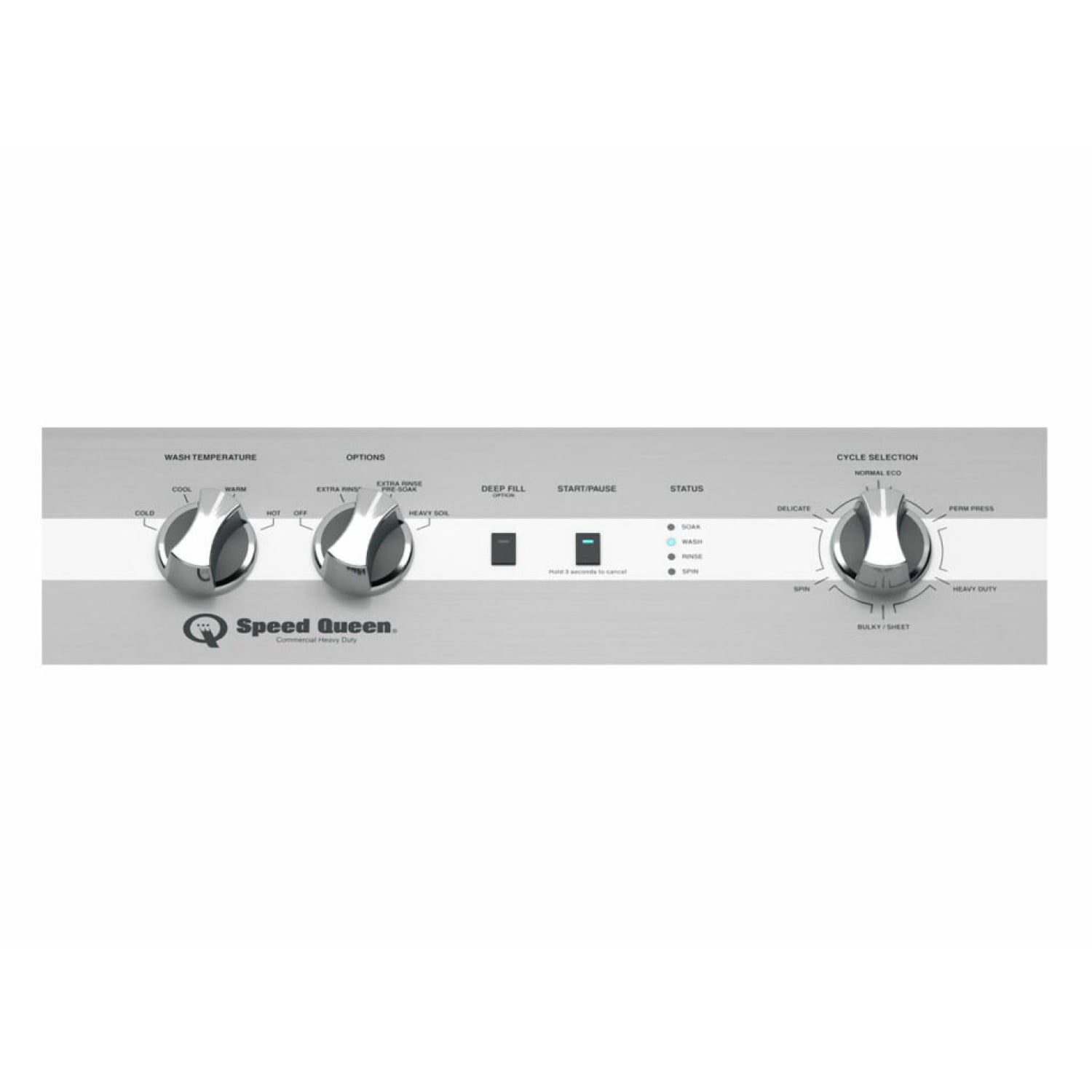

• Control Type: Mechanical Knobs / Rear Control Panel

• Electrical Requirements: 120V / 15A / 60Hz

• Product Weight: 186 lbs

• Shipping Weight: 196 lbs
