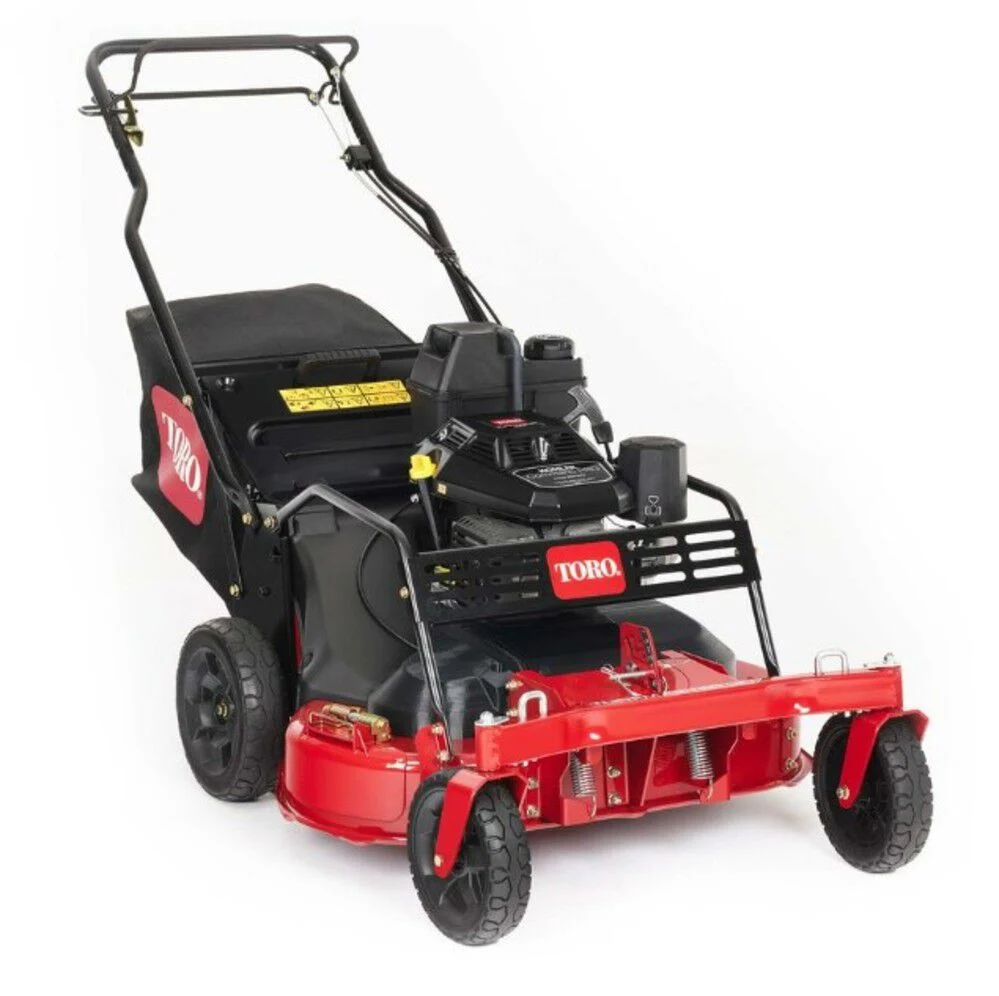

Toro TurfMaster HDX 30 inch Commercial Walk Behind Mower w/ Casters 22236

Product Description

The Toro TurfMaster HDX 30-Inch Commercial Walk-Behind Mower with Casters (Model 22236) is a heavy-duty masterclass in commercial landscaping efficiency. Specifically engineered for landscape contractors, property managers, and owners of expansive estates, this professional-grade machine fills the crucial gap between standard walk-behind mowers and bulky zero-turns. By providing a wide 30-inch cutting path, it drastically slashes mowing time, allowing operators to finish jobs up to 40% faster than with conventional equipment, all while maintaining an immaculate, professional-quality finish.

At the core of its redesigned mobility system is a highly maneuverable front caster-wheel setup. This design permits fluid, effortless pivoting around complex obstacles like trees, tightly curved garden flowerbeds, and structural landscaping elements. For long, uninterrupted paths, the caster wheels feature an integrated locking capability that ensures perfectly straight stripes on wide terrain. The structural integrity is strictly commercial-grade, combining a rugged 13-gauge stamped steel deck with a cast aluminum frame. Dual 0.135-inch thick precision steel blades spin at a staggering blade tip speed of 18,000 feet per minute, guaranteeing an absolute clean cut regardless of grass density.

Engineered for nonstop daily operation, the mower minimizes maintenance and operational downtime through intelligent user controls. It features a heavy-duty Blade Brake Clutch (BBC) system that lets the operator stop the blade rotation completely while keeping the engine running, which is ideal for clearing debris out of the path, crossing paved driveways safely, or emptying the large 2.5-bushel collection bag without the hassle of restarting the motor. Height adjustments are streamlined into a simplified 2-point height-of-cut mechanism, replacing the tedious task of walking around to calibrate four individual wheel levers. Backed by a powerful Kohler engine and a substantial 1-gallon fuel capacity, this walk-behind powerhouse delivers optimal uptime and reliability under demanding commercial workloads.

Technical Specifications

• Model Number: 22236

• Cutting Width: 30 inches (76 cm)

• Engine Model: Kohler CV224 Command Pro

• Engine Displacement: 224 cc

• Fuel Capacity: 1.0 Gallon (3.8 Liters / 4 Quarts)

• Fuel Type: Unleash Gasoline

• Transmission Type: Heavy-Duty Self-Propelled Rear-Wheel Drive

• Ground Speed: Variable up to 4.0 mph (6.4 kph)

• Deck Construction: 13-Gauge Steel Deck with Cast Aluminum Frame

• Blade System: 2 Blades / 0.135 inch (0.343 cm) Thick Steel

• Blade Engagement: Blade Brake Clutch (BBC)

• Blade Tip Speed: 18,000 ft/min (5,486 m/min)

• Spindle Architecture: Die-Cast Spindle Housing with 17 mm Cold-Formed Shafts

• Front Tires: 9 in. x 2 in. Rubber Tires with Co-Polymer Caster Wheels (with Straight-Line Locking Mechanism)

• Rear Tires: 10.5 in. x 3 in. Rubber Tires with Co-Polymer Wheels and Precision Ball Bearings

• Cutting Height Range: 1.5 inches to 5.0 inches (3.8 cm to 12.7 cm) in 0.50-inch (1.3 cm) Increments

• Height-of-Cut Adjustment: Heavy-Duty 2-Point System

• Mowing Configurations: 3-in-1 Standard (Bagging, Mulching, and Side Discharge)

• Bagger Capacity: 2.5 Bushels

• Starting System: Recoil / Pull Cord

• Assembled Weight: 195 lbs (88.5 kg)

• CARB Compliant: Yes
