Zephyr 24″ Microwave Drawer

Product Description

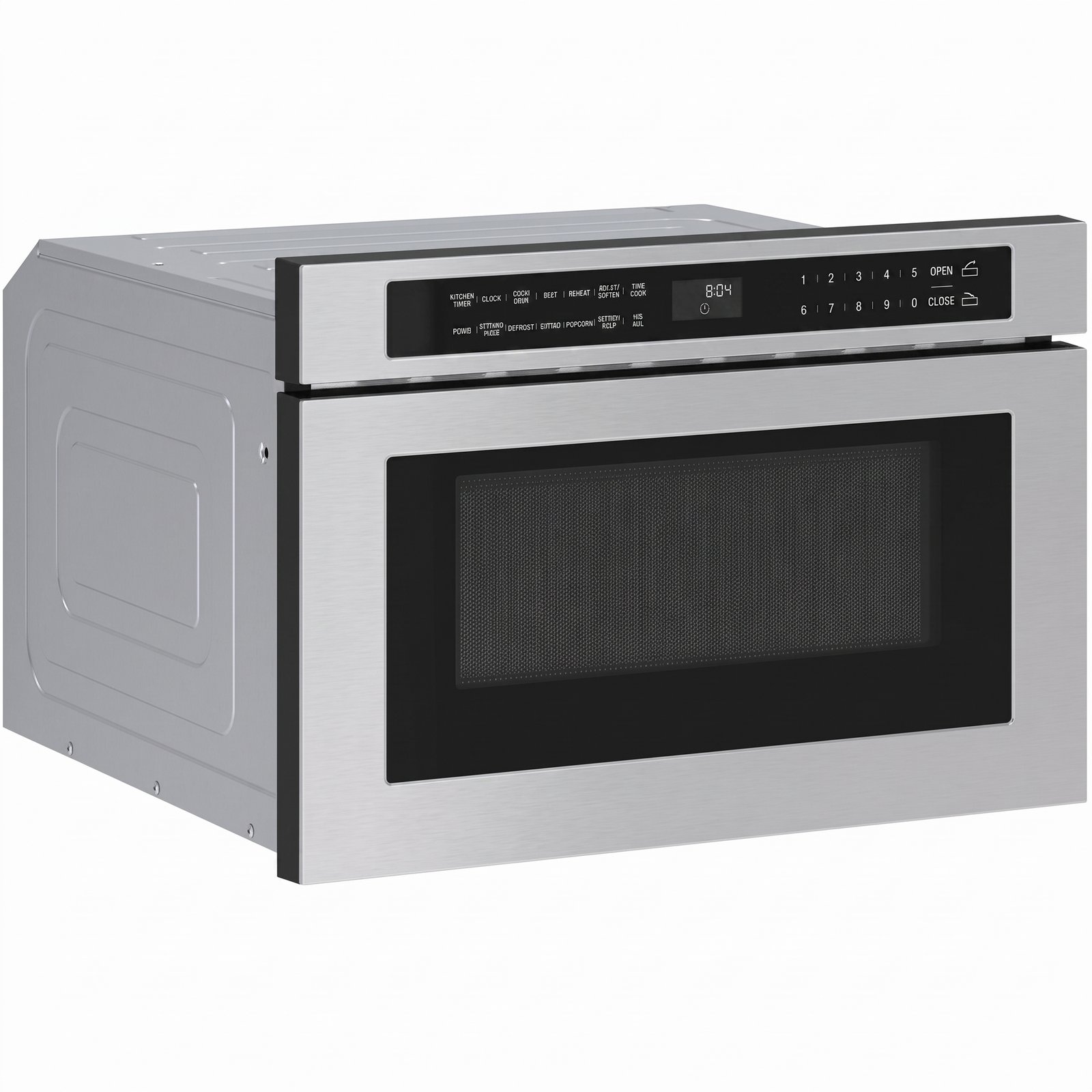

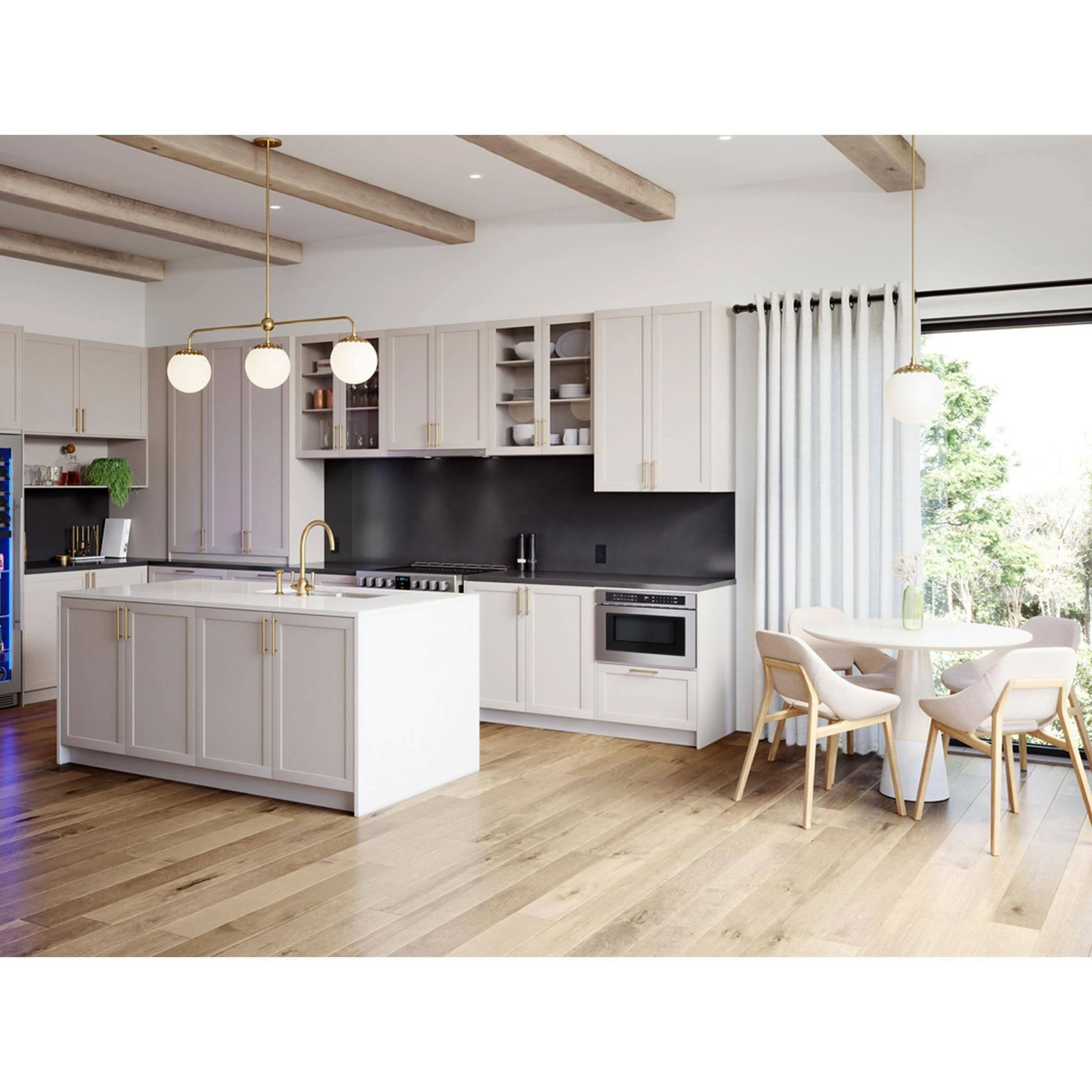

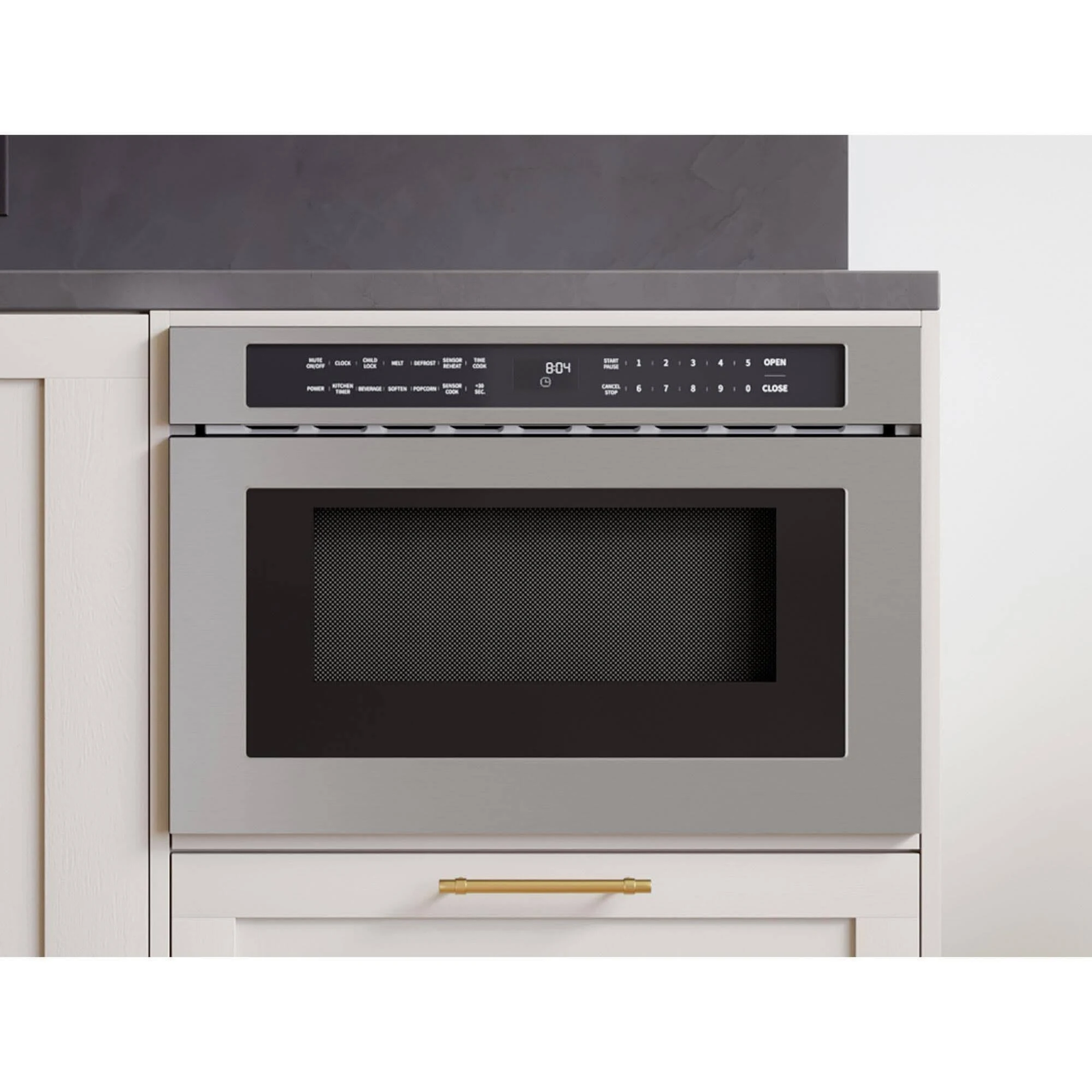

The Zephyr 24-Inch Built-In Microwave Drawer (Model: MWD2401AS) delivers a sleek, space-saving cooking solution designed to integrate seamlessly into modern kitchen cabinetry. By shifting the microwave from the countertop or over-the-range to an under-counter or in-island location, this appliance creates a clean, low-profile aesthetic while maximizing valuable workspace. The exterior is crafted from durable 304-grade stainless steel and treated with a premium fingerprint-resistant, easy-clean coating that effortlessly repels smudges, greasy hands, and everyday kitchen spills.

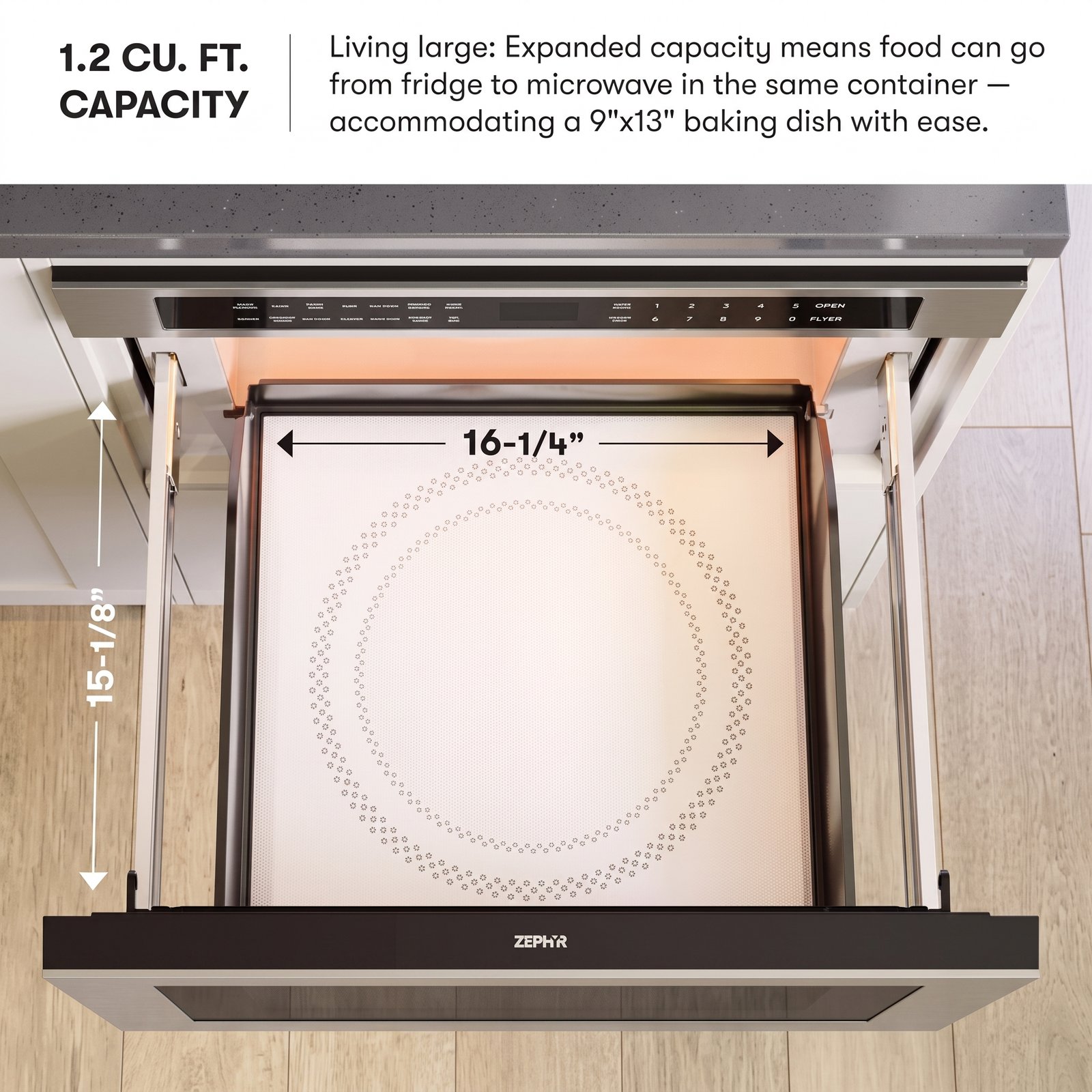

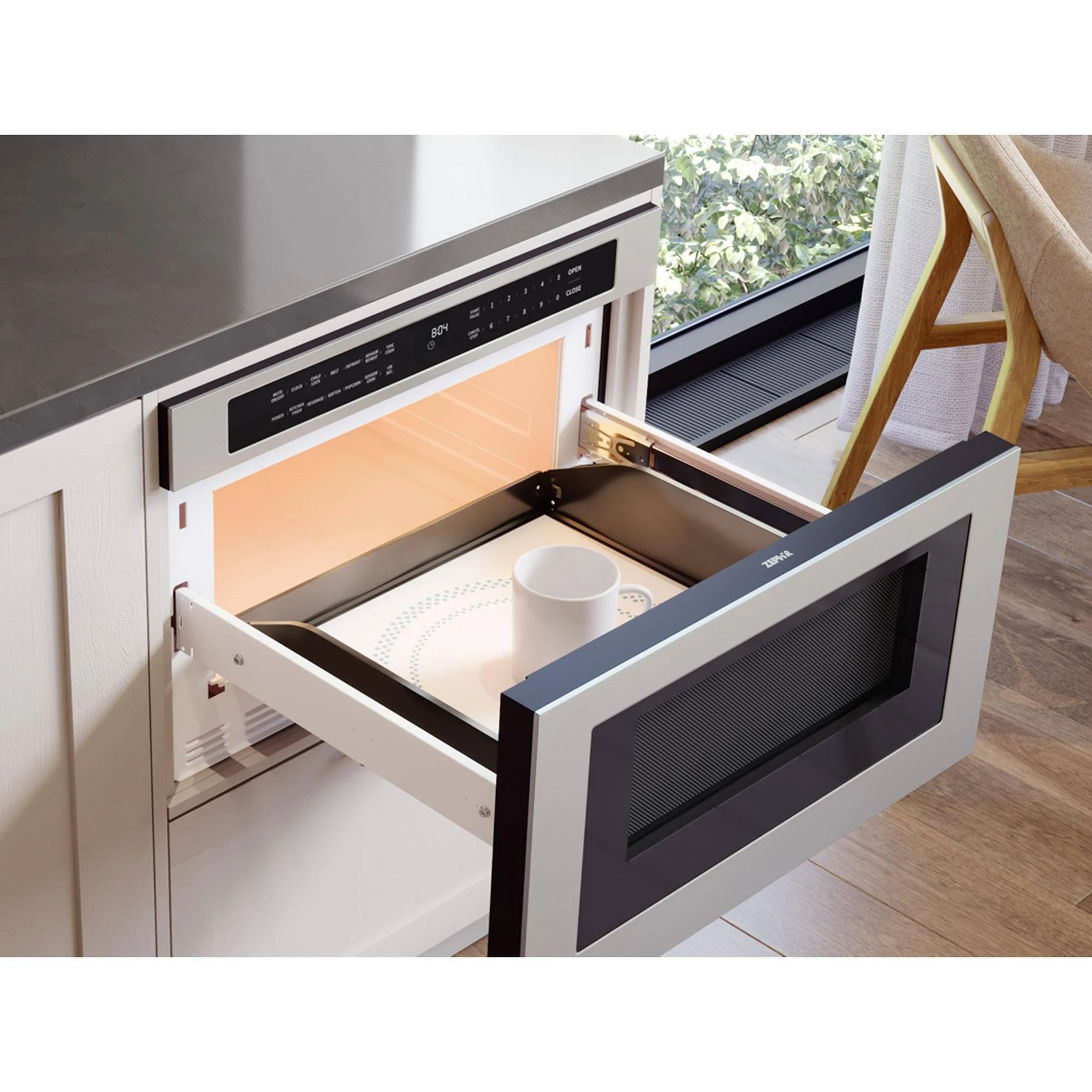

Equipped with an advanced motorized configuration, the drawer glides open and closed smoothly at the push of a button, minimizing physical effort and preventing liquid items from splashing. The spacious 1.2 cubic foot interior capacity is optimized with a wide, turntable-free flat bottom that easily accommodates large cookware pieces, including standard 9×13 baking dishes. Bright interior lighting provides clear visibility of the contents during the cooking process, ensuring meals are monitored effortlessly.

Operation is controlled via an intuitive electronic LCD touchscreen panel. The unit outputs 1000 watts of cooking power across 10 distinct power levels, allowing for precise thermal management whether melting delicate ingredients or reheating dense dishes. Advanced Sensor Cooking and Sensor Reheating technologies take the guesswork out of meal preparation by automatically measuring real-time vapor and humidity levels inside the chamber, dynamically adjusting the cook time and power output to prevent food from drying out. Additional specialty options include automated defrost settings based on food category, dedicated melt/soften functions, and a convenient control lock feature to prevent accidental operation by children.

Technical Specifications

• Model Number: MWD2401AS

• Total Capacity: 1.2 cubic feet

• Power Output: 1000 Watts

• Power Levels: 10

• Exterior Finish: 304-Grade Stainless Steel (Fingerprint Resistant)

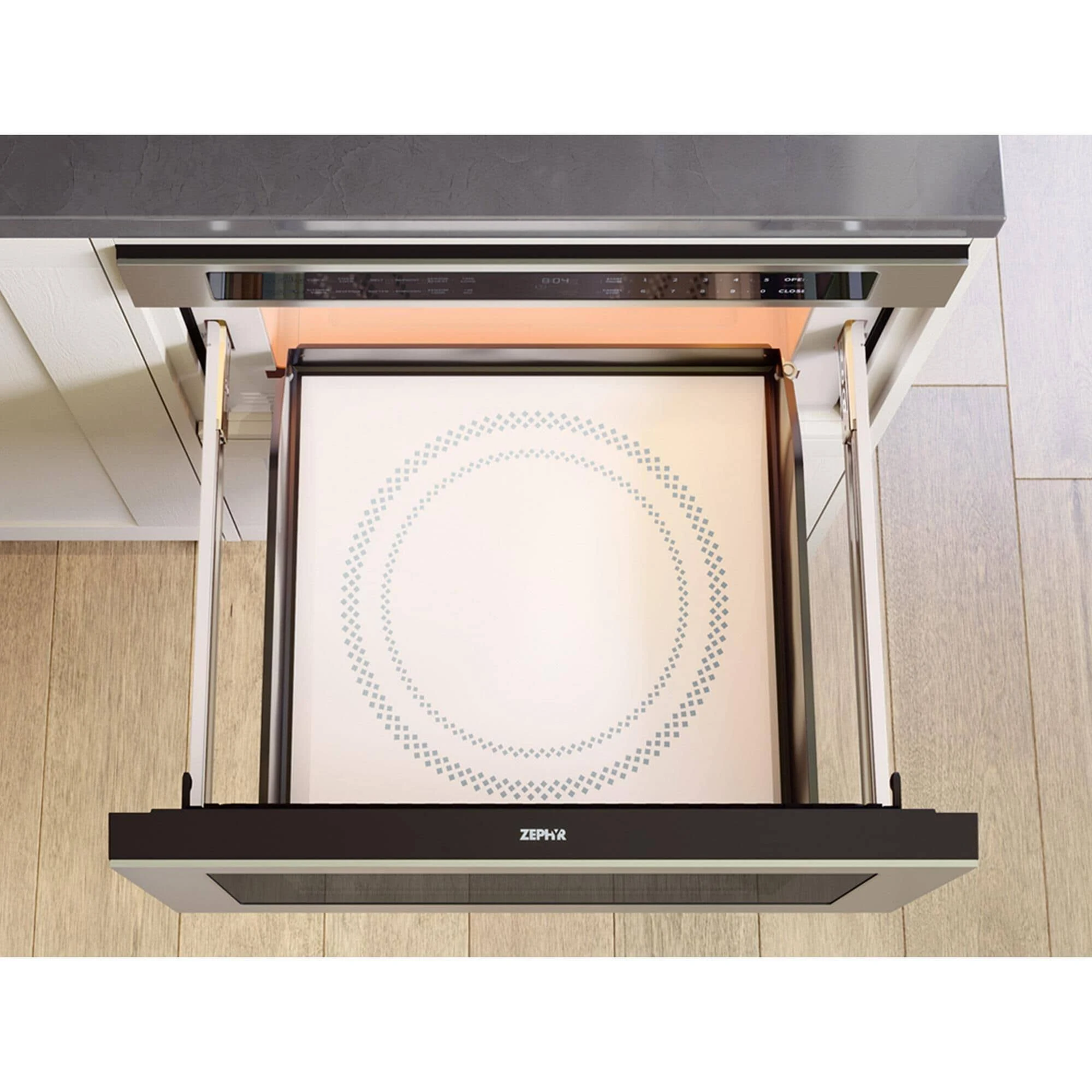

• Interior Finish: White Cavity (Flat Bottom, Turntable-Free)

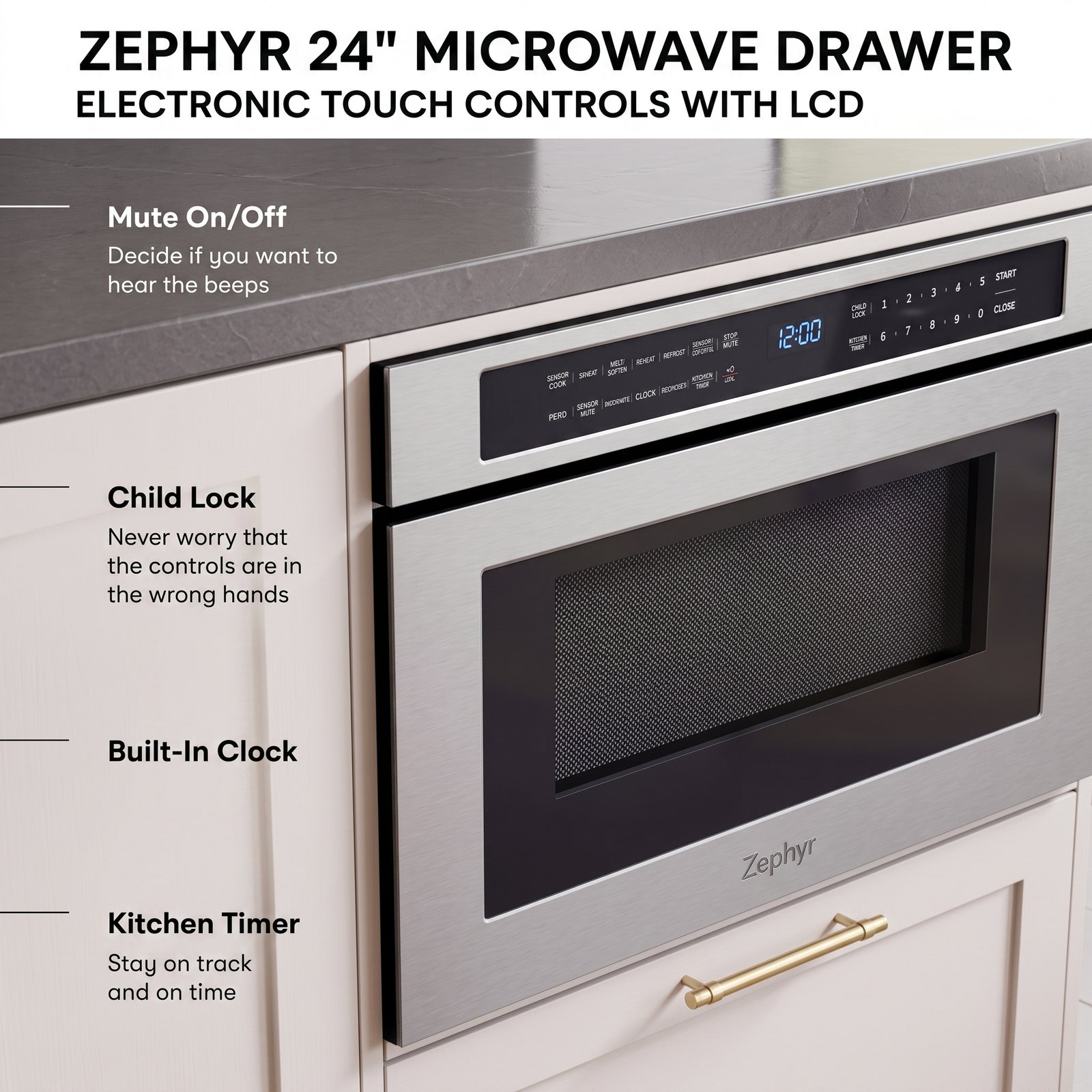

• Control Type: Electronic LCD Touch Controls

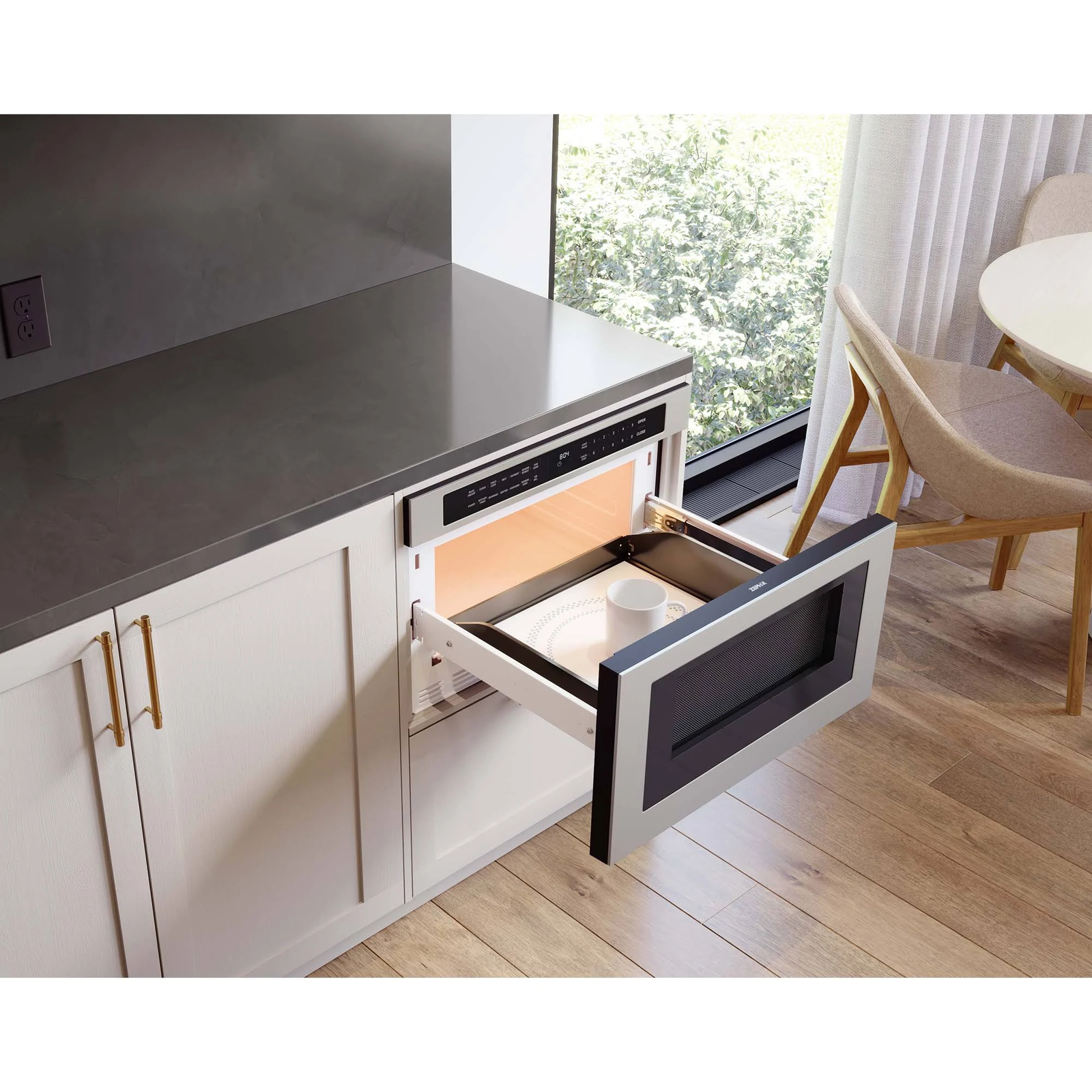

• Door Release: Motorized Auto Touch Open/Close

• Sensor Cook Options: Potato, Chicken, Fish, Ground Meat, Fresh Vegetables, Frozen Vegetables, Canned Vegetables, Frozen Entrées

• Sensor Reheat Options: Pasta, Pizza, Soup

• Melt/Soften Options: Butter, Chocolate, Ice Cream, Marshmallow, Cream Cheese, Sauces

• Defrost Options: Ground Meat, Steaks/Chops, Poultry (Bone-in/Boneless), Roast, Casserole, Soup

• Additional Control Features: Control Lock (Child Lock), Mute On/Off Option, Built-In Clock, Kitchen Timer, +30 Seconds Button

• Interior Lighting: Incandescent

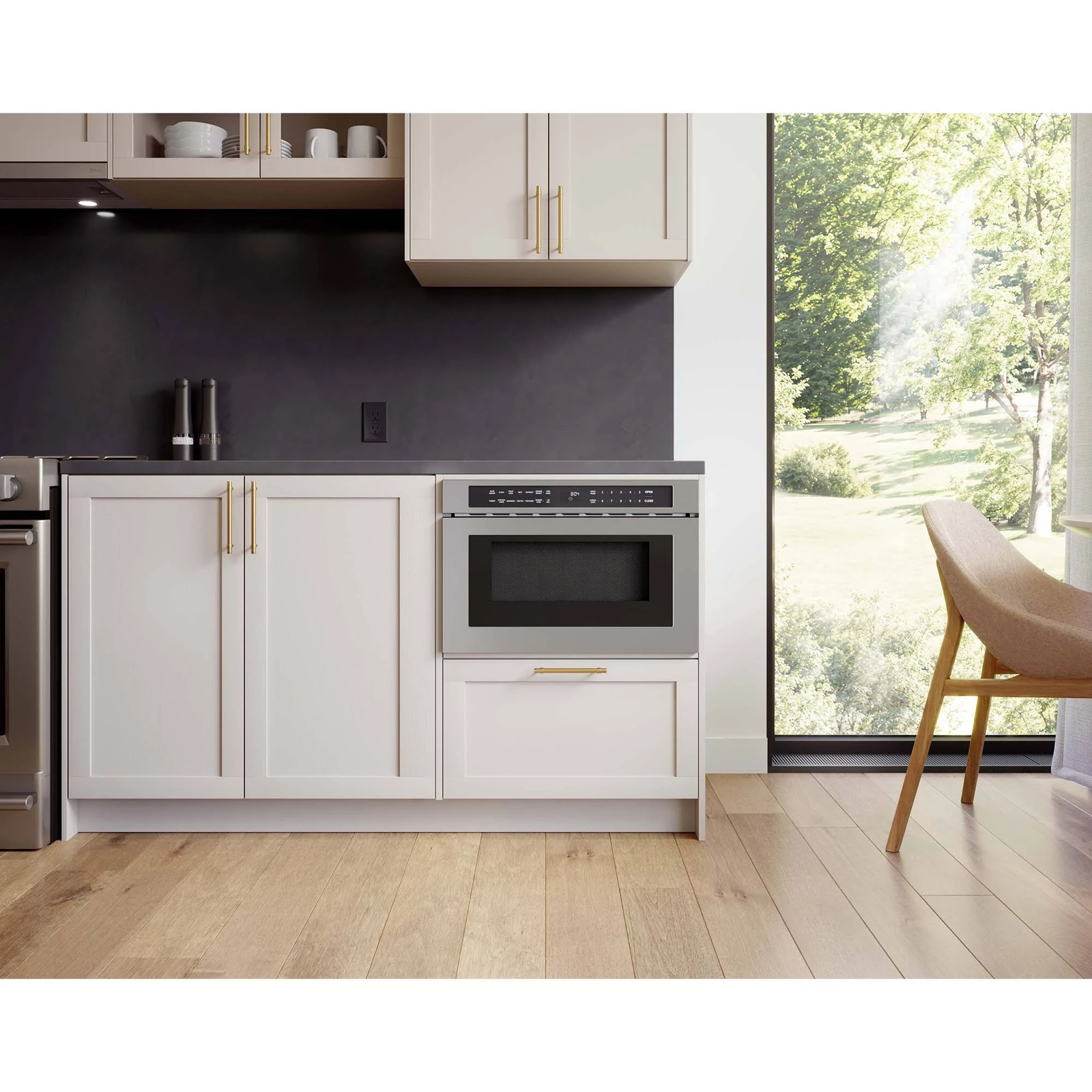

• Installation Type: Built-In (Approved for Standard or Flush-Mount Cabinet Integration)

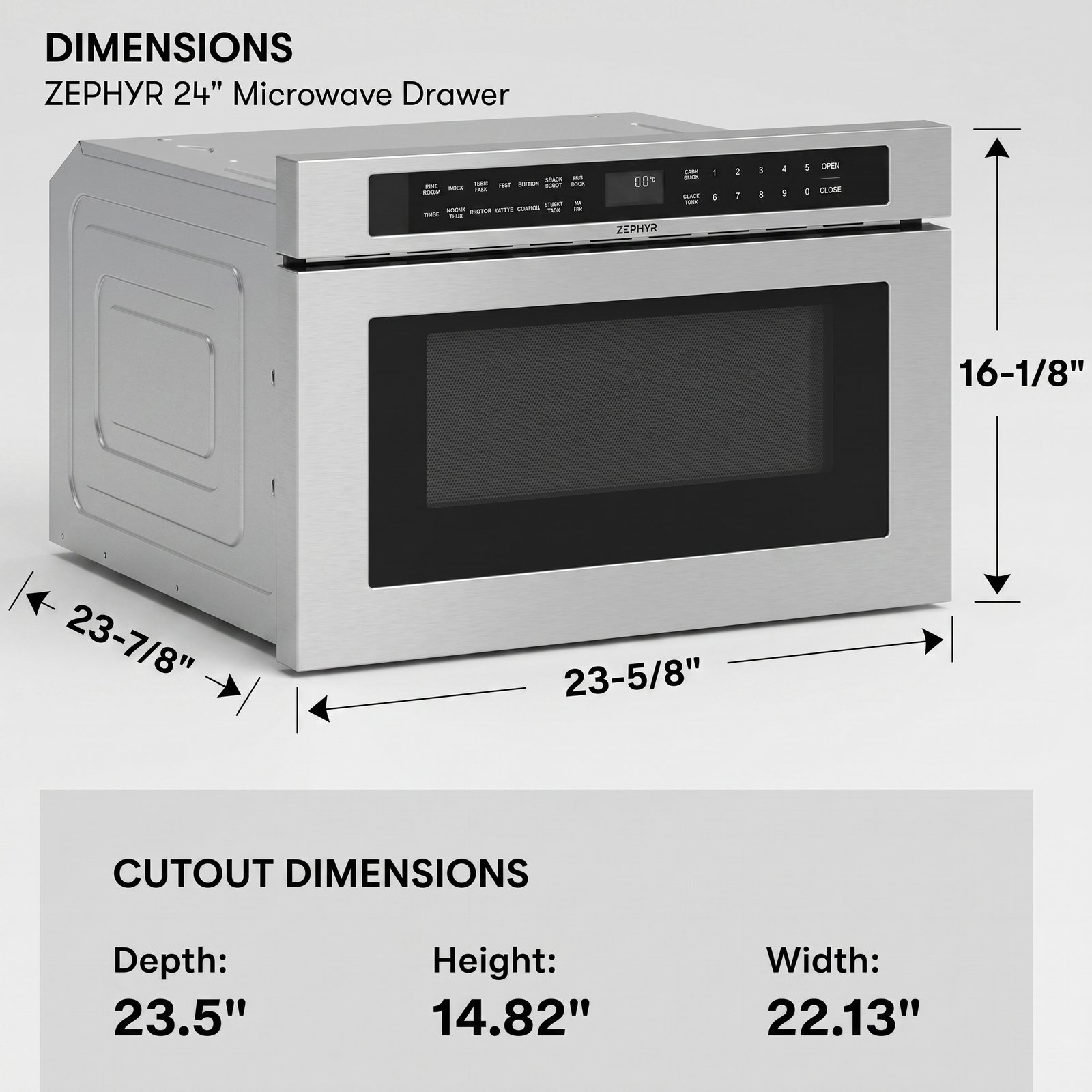

• Product Width: 23-5/8 inches

• Product Depth: 23-7/8 inches

• Product Height: 16-1/8 inches

• Cutout Width Required: 22-1/8 inches

• Cutout Depth Required: 23-1/2 inches

• Cutout Height Required: 14-13/16 inches

• Interior Cavity Width: 17-1/4 inches

• Interior Cavity Depth: 17-1/2 inches

• Interior Cavity Height: 7-7/8 inches

• Electrical Requirements: 120V / 60Hz / 15A Max

• Power Cord Length: 4.25 feet

• Product Weight: 70 lbs

• Certifications: UL Listed, ADA Compliant, CEC Title 20 Compliant
