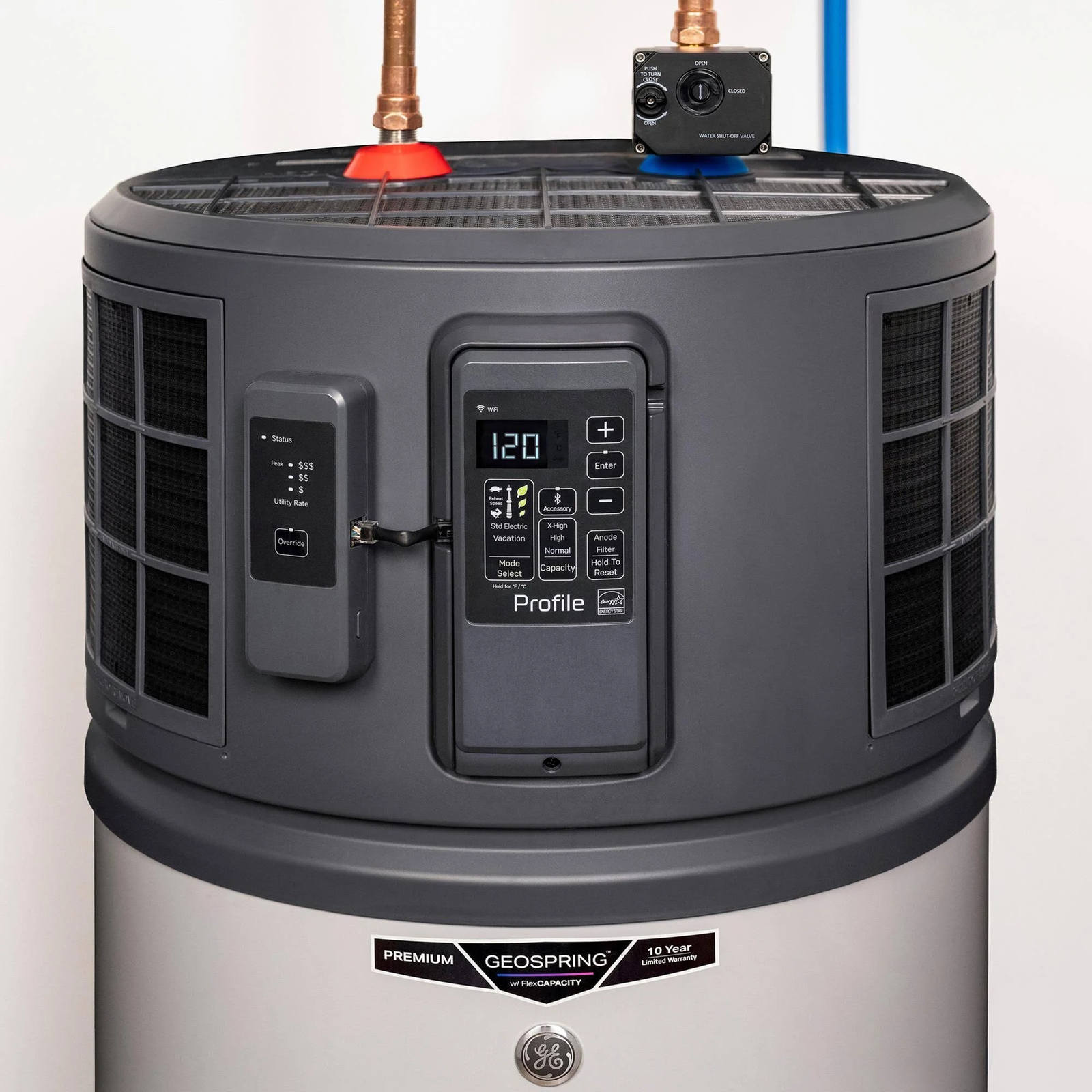

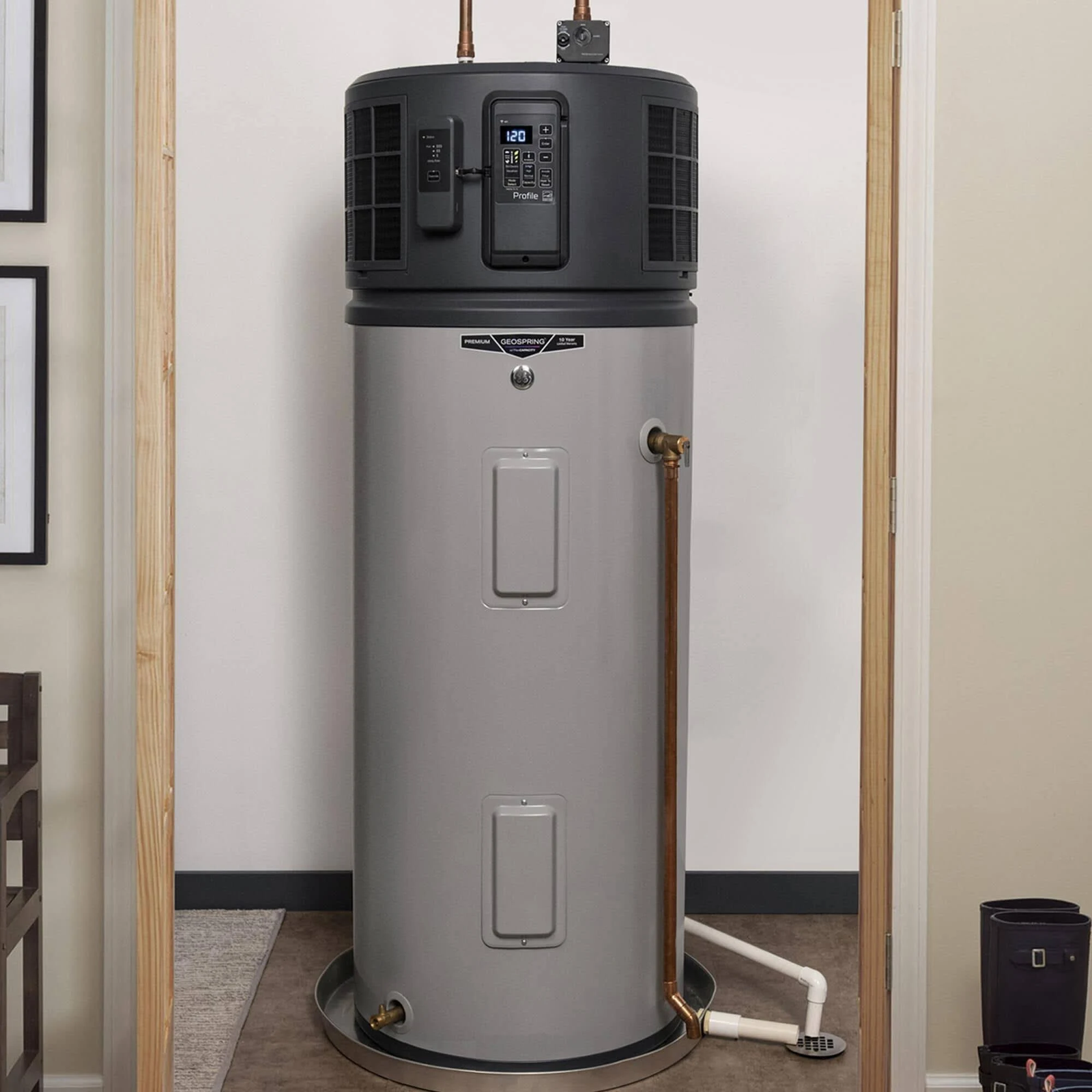

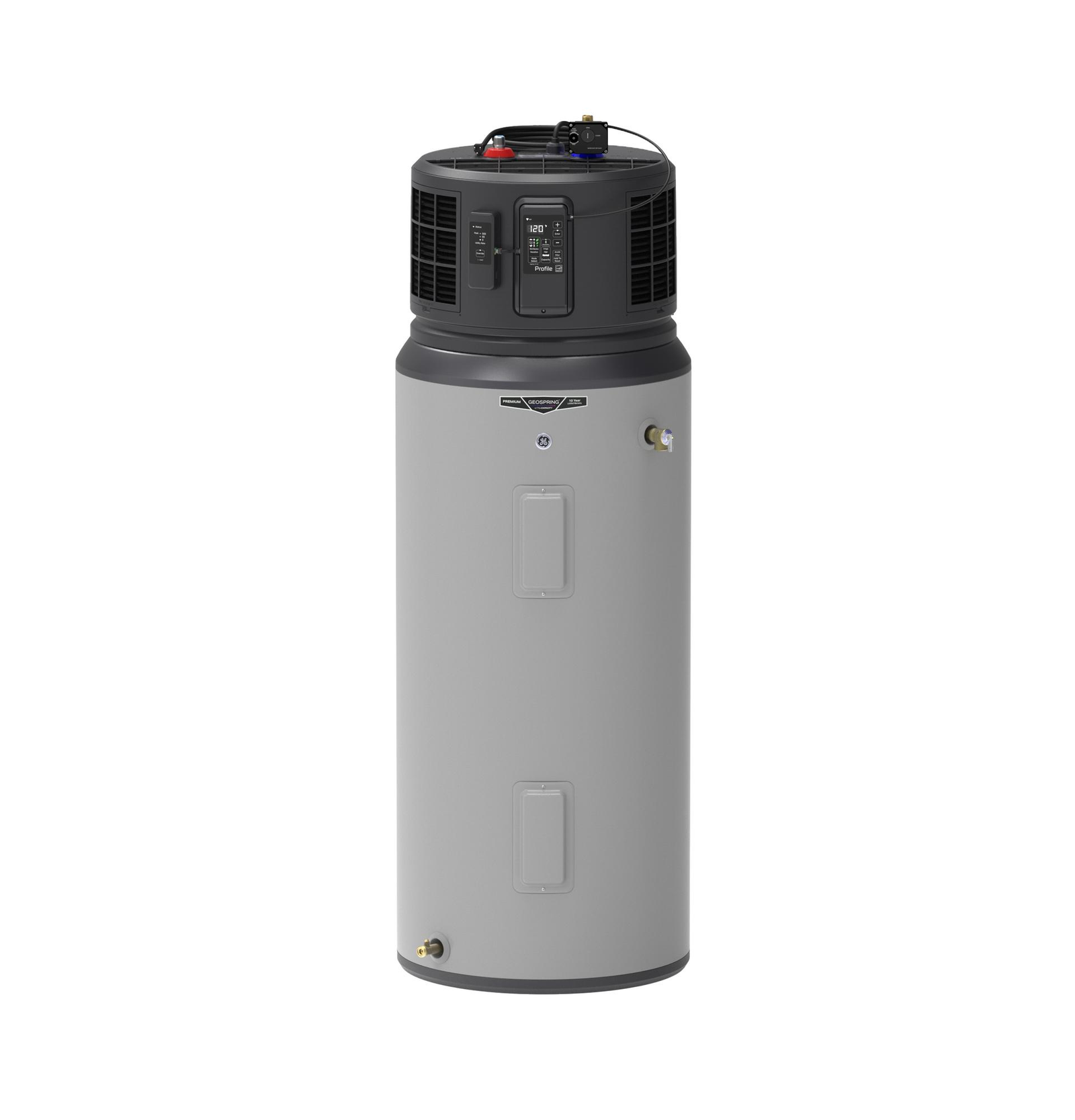

GE Profile GEOSPRING Smart Hybrid Heat Pump Water Heater

Product Description

The GE Profile GeoSpring Smart Hybrid Heat Pump Water Heater represents a major advancement in residential energy efficiency and smart home integration. Engineered to provide maximum utility savings, this advanced water heater utilizes hybrid heat pump technology to pull heat from the surrounding ambient air and transfer it into the water tank. This process delivers up to 4.7 times more energy efficiency than a standard electric tank water heater, allowing homeowners to drastically lower their annual electricity consumption while exceeding ENERGY STAR guidelines.

Equipped with proprietary FlexCapacity technology, the system features an integrated electronic mixing valve that precisely blends hot and cold water at the point of exit. This allows the water inside the tank to be stored at a higher temperature safely, effectively providing up to 60% more hot water during peak demand so that a standard 50-gallon unit can perform like an 80-gallon model. To cater to fluctuating household needs, users can cycle through four distinct operation modes: Heat Pump mode for maximum efficiency, Hybrid mode for automated balance, High Demand/Boost mode for rapid recovery, and Standard Electric mode.

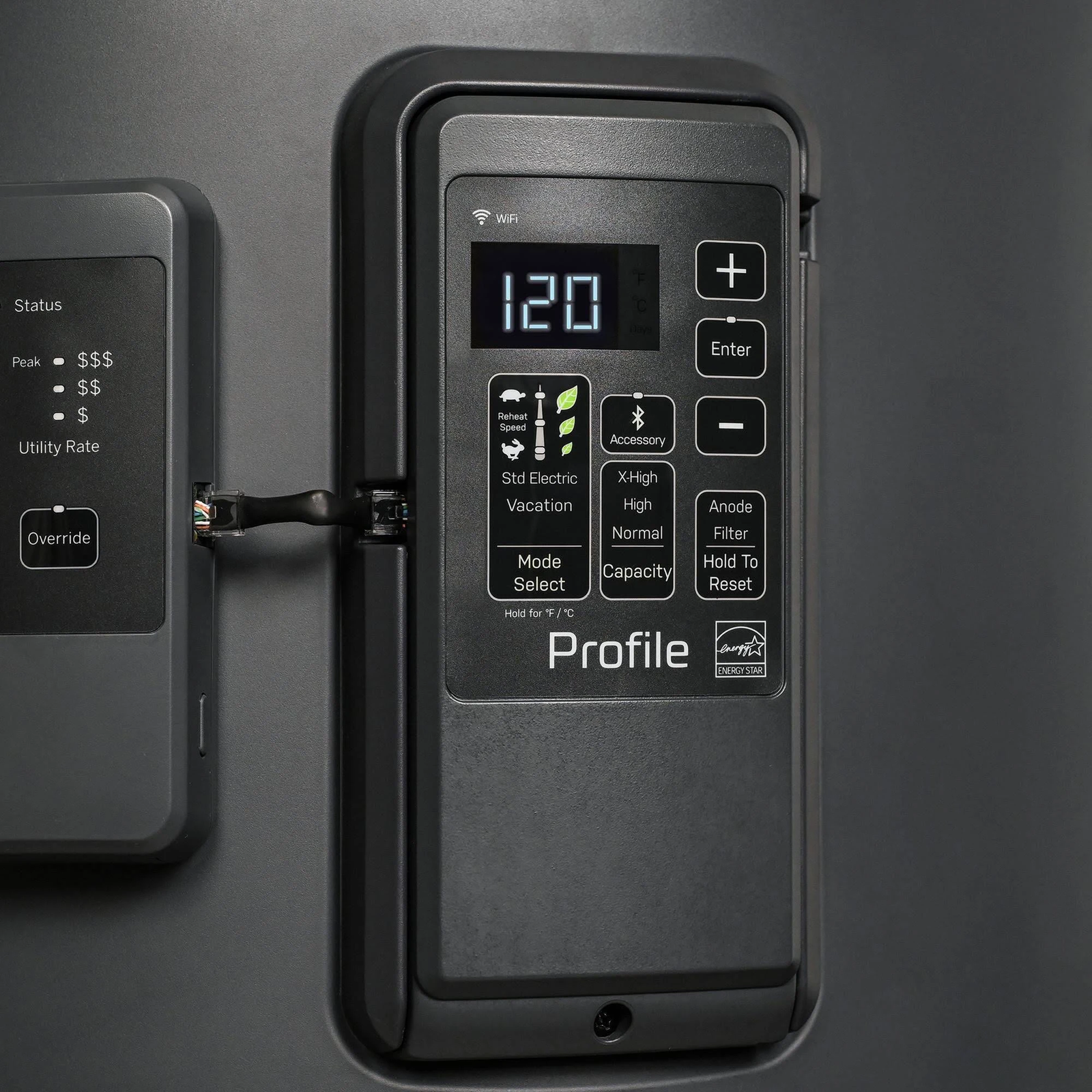

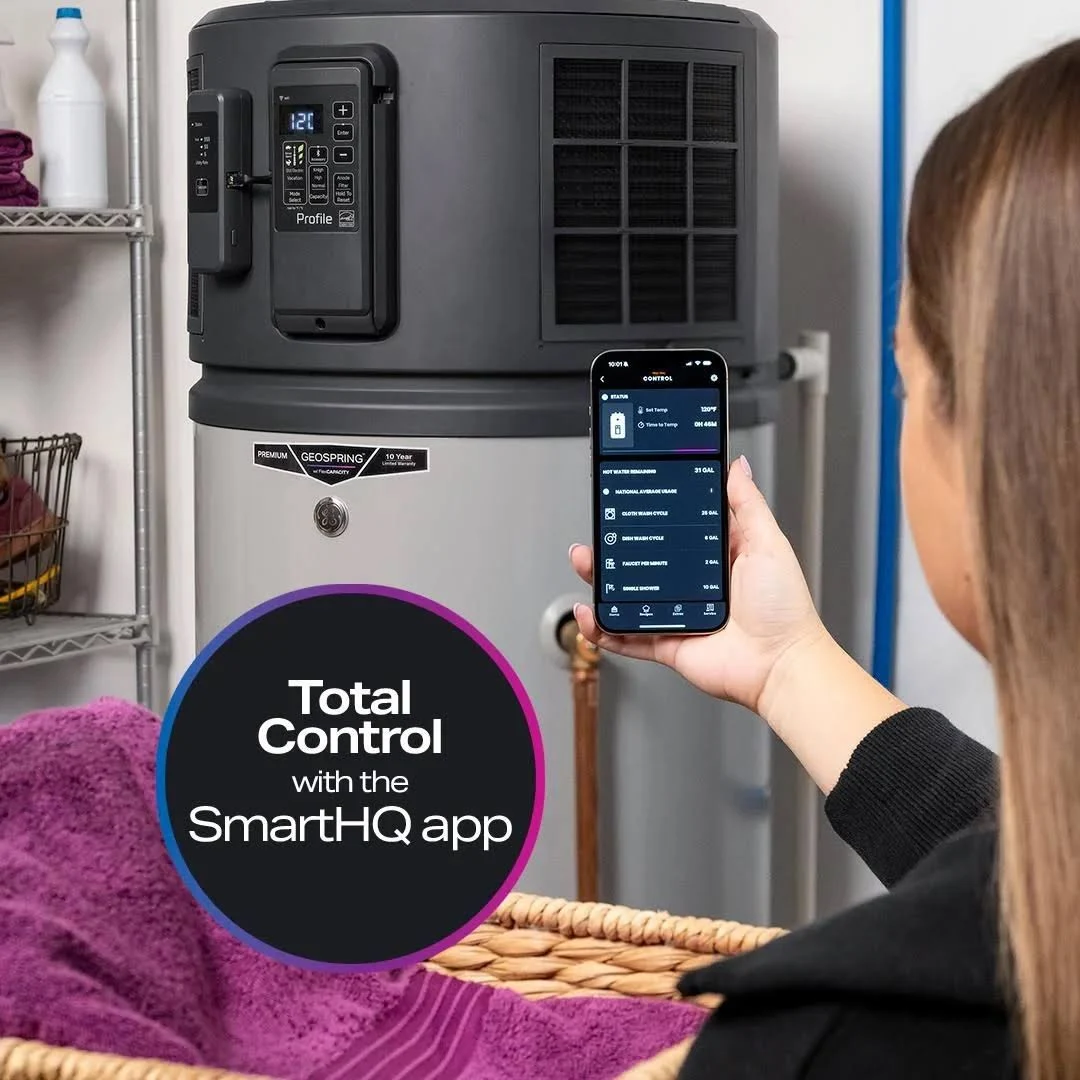

Smart home optimization is managed through built-in Wi-Fi and the SmartHQ application, allowing for remote temperature adjustments, diagnostic tracking, and real-time energy monitoring. The system is EcoPort Certified for Dynamic Demand Response, automatically adjusting its power draw to run when local utility grid rates are at their lowest. Safety is also prioritized via an included wireless water leak sensor that automatically triggers an emergency water shutoff to protect your property from potential water damage. Operating at a whisper-quiet sound level as low as 41 dBA, this hybrid unit delivers high-volume performance with minimal disruption.

Technical Specifications

• Tank Capacity: 50 Gallons (Provides up to 80 gallons of effective capacity with FlexCapacity)

• Uniform Energy Factor (UEF): Up to 4.3

• First Hour Rating (FHR): 77 Gallons

• Compressor Type: Variable Speed Compressor

• Operating Sound Level: As low as 41 dBA

• Operating Modes: Hybrid (Default), Heat Pump, High Demand/Boost, Standard Electric

• Voltage/Electrical Frequency: 240V / 60Hz

• Circuit Requirements: 240/208VAC 30A dedicated circuit

• Upper Heating Element Wattage: 5500W

• Lower Heating Element Wattage: 3600W

• Temperature Setting Range: 100°F to 140°F (Factory default set at 120°F)

• Water Connection Size: 3/4 inch MNPT (Male National Pipe Thread)

• Water Connection Location: Top of unit

• Drain Valve Type: Heavy-duty brass (Located on left side)

• Anode Rod: Sensing Magnesium Anode Rod

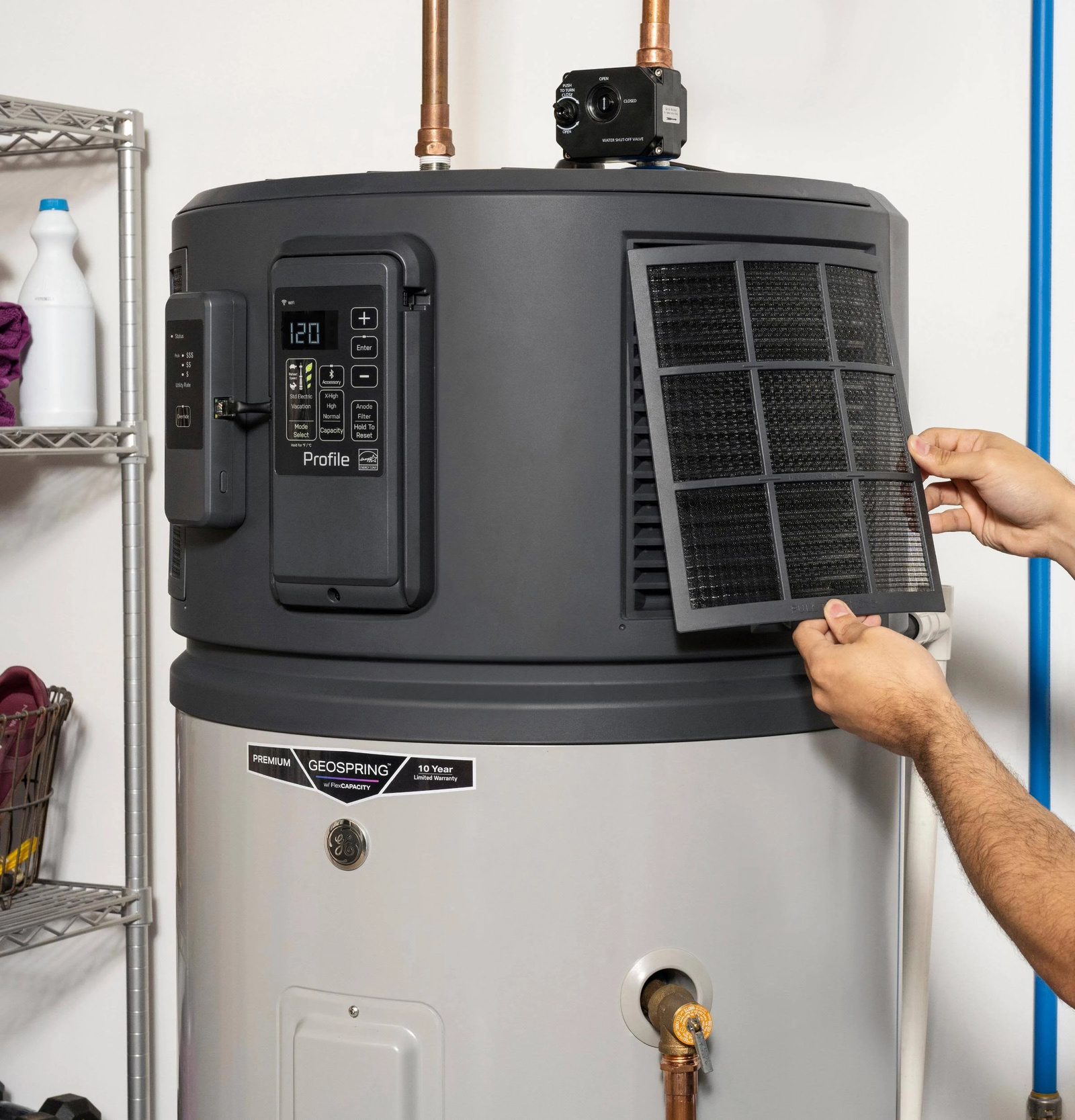

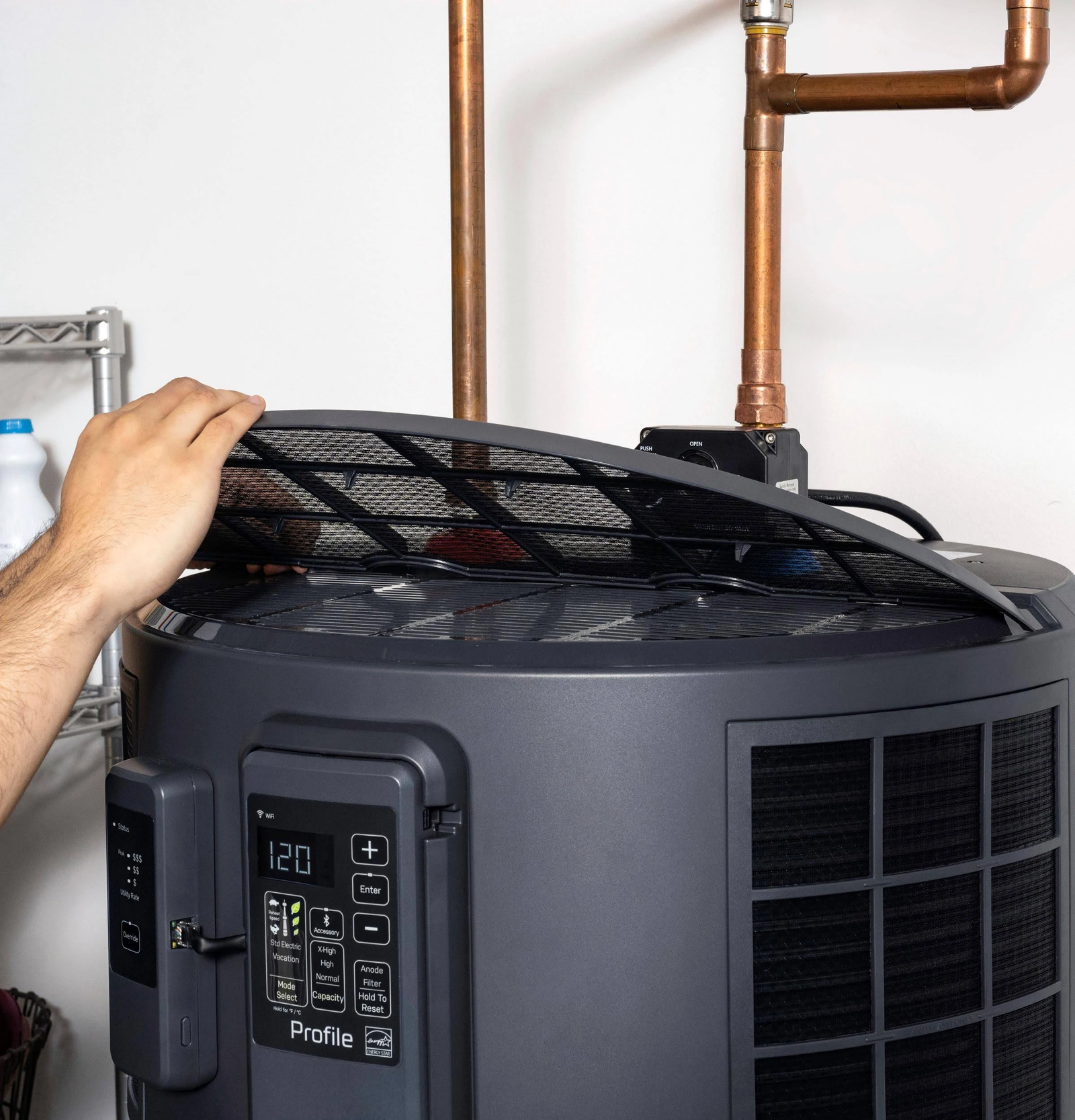

• Air Filter: Washable, renewable filter located at the top of the unit

• Smart Connectivity: Built-in Wi-Fi, SmartHQ App, Amazon Alexa, Google Home

• Grid Optimization: EcoPort Certified, Dynamic Demand Response Capable

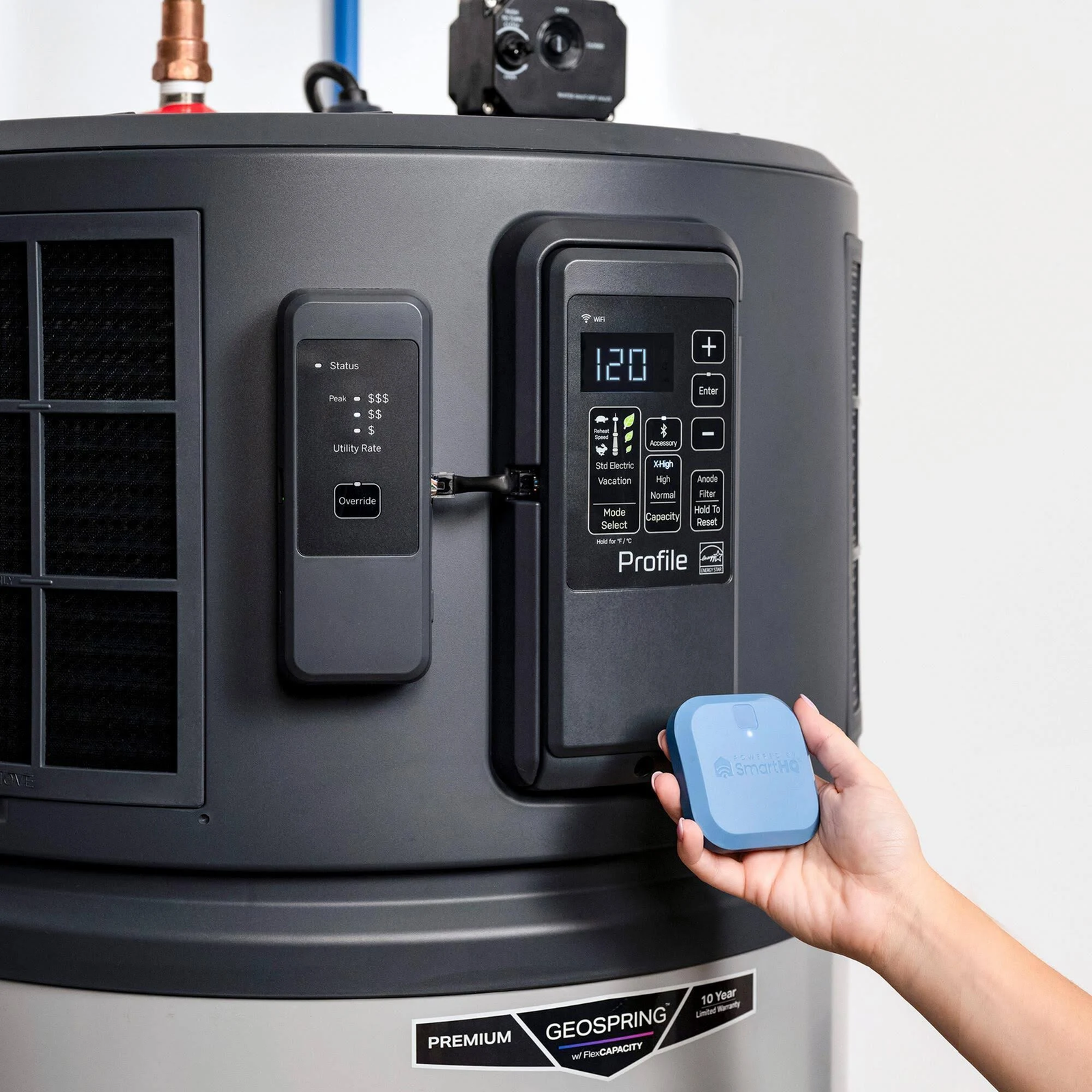

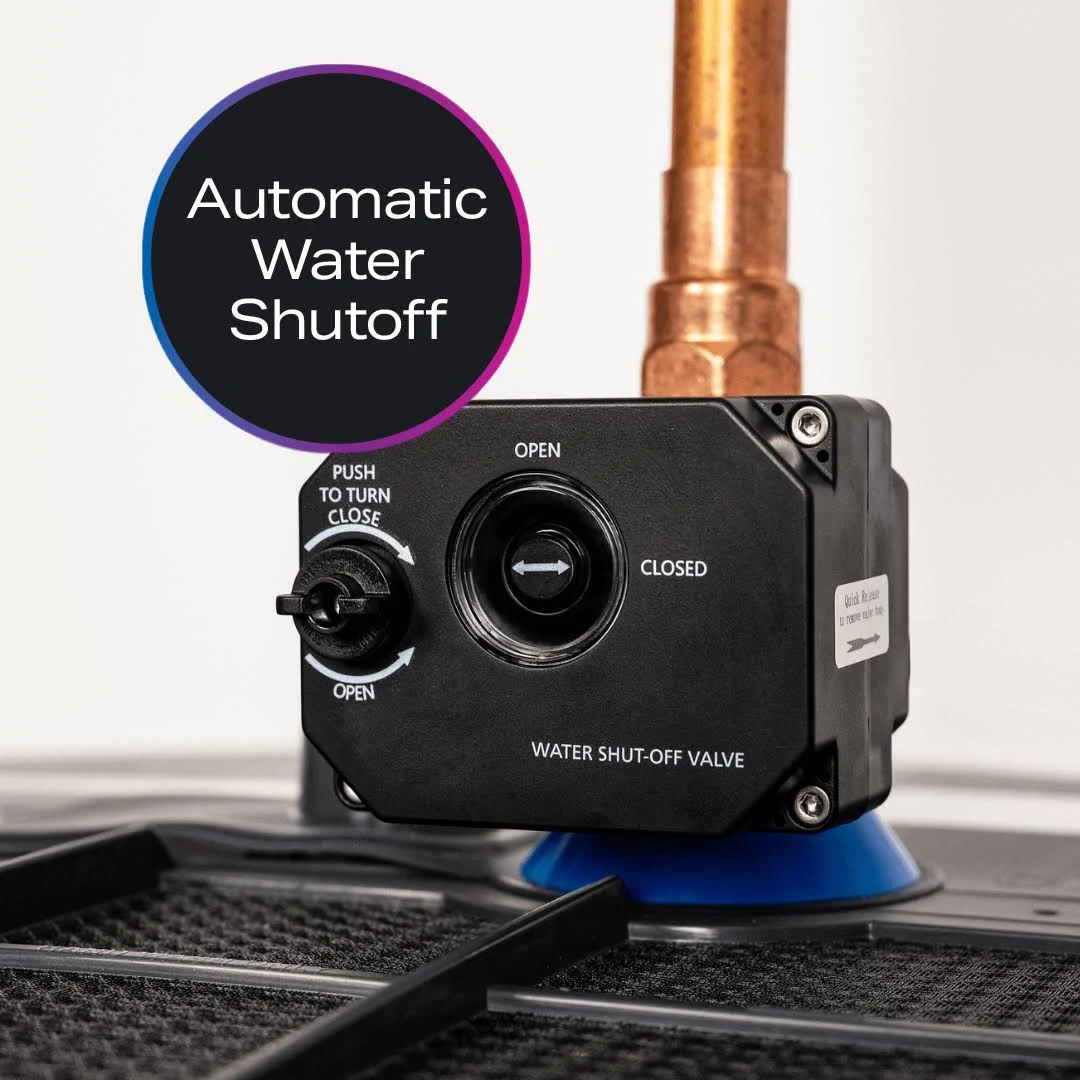

• Leak Detection: Wireless leak sensor included with automatic water shutoff system

• Operating Water Pressure: 20–125 PSI (30–80 PSI recommended)

• Overall Height (To top of connections): 68.25 inches

• Product Diameter / Jacket Width: 24 inches

• Overall Depth: 24 inches

• Net Weight: 179 lbs

• Approximate Shipping Weight: 195 lbs
